2014442108 Nano-Fit by Molex

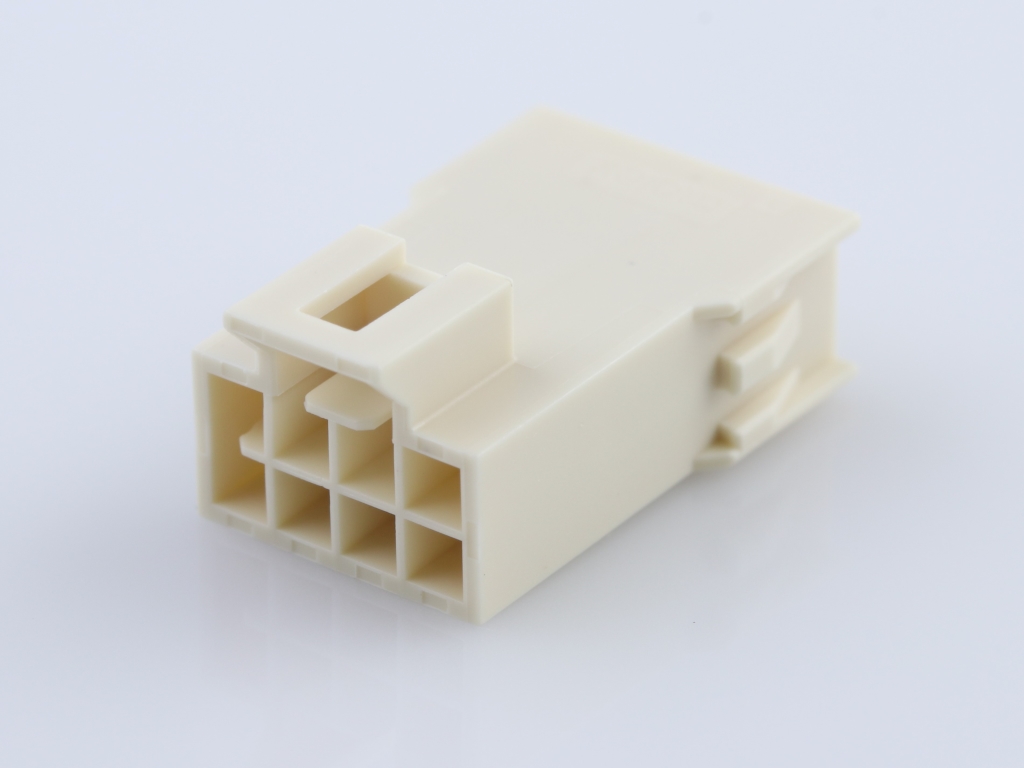

Nano-Fit Plug Housing, TPA Capable, 2.50mm Pitch, Dual Row, 8 Circuits, Natural, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 201444-2108 |
Where to Buy
Prices starting from US$0.28
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Gender | Plug |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 0.894/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +125°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector Housing, Plug, 8Pos, 2.5Mm | Newark Electronics |
| CONNECTOR HOUSING, PLUG, 8POS, 2.5MM | element14 |
| Headers & Wire Housings NANO-FIT PLUG HSG DR 8CKT NAL | Sager |
| NANO-FIT PLUG HSG DR 8CKT NAL | Heilind Americas |
| NANO-FIT PLUG HSG DR 8CKT NAL | Farnell |
