2018450040 MultiCat by Molex

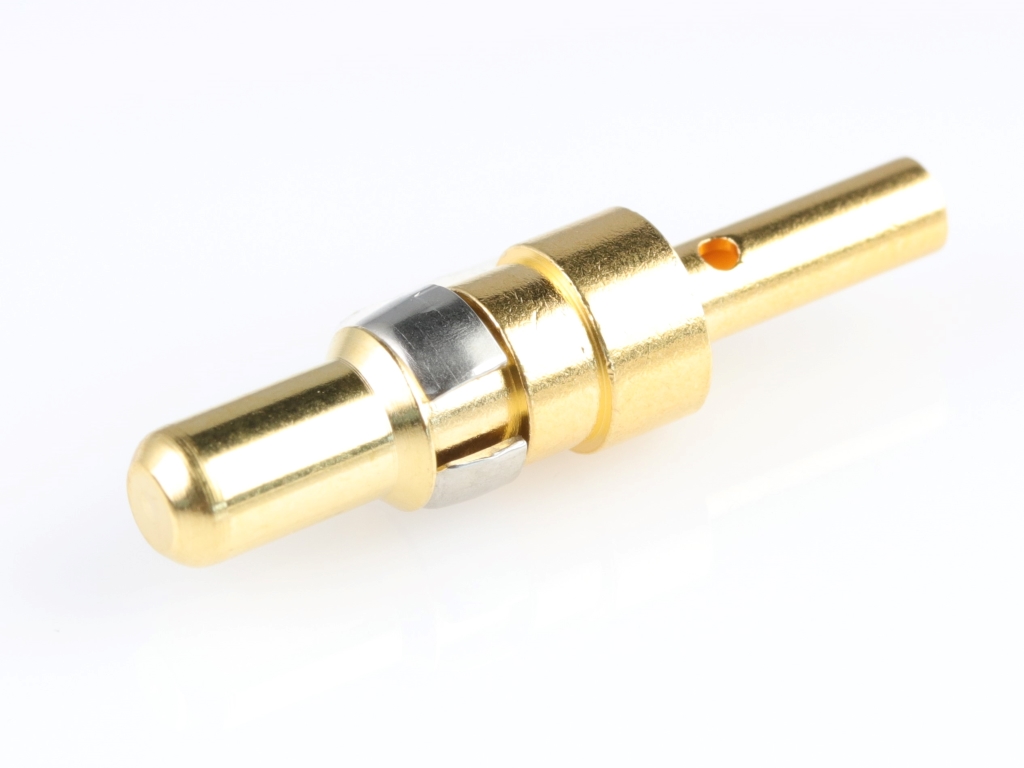

MultiCat High-Power Plug Terminal, Gold over Nickel Phosphorus Plating, 10-8 AWG
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
201845-0040,
FPG003P204 |
Where to Buy
Prices starting from US$2.20
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$2.86
|
6,645
in stock
|
Buy Now |
|
Newark Electronics
from US$3.95
|
508
in stock
|
Buy Now |
|
RS
from US$4.70
|
305
in stock
|
Buy Now |
|
|
RS Americas
from US$3.63
|
13
in stock
|
Buy Now |
|
Avnet America
from US$2.46
|
0
in stock
|
Buy Now |
|
Compona
from US$2.20
|
0
in stock
|
Buy Now |
|
element14
from US$3.32
|
0
in stock
|
Buy Now |
|
Sager
from US$2.78
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.74
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.45
|
0
in stock
|
Buy Now |
|
Farnell
from US$4.88
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MultiCat |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 40.0A |
| Voltage Maximum | 1000V AC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 500 |
| Gender | Male |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Nickel Phosphorus |
| Material Plating Termination | Gold |
| Net Weight | 3.492/g |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 0.200µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 4.03-5.84mm |
| Wire Size Awg | 10, 8 |
| Wire Size Mm | 5.26-8.36 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MULTICAT PLG CONTACT 8-10 AWG | TTI Americas |
| Multicat High-Power Plug Terminal Gold Over Nicke |Molex 201845-0040 | Newark Electronics |
| MultiCat plug terminal, 8-10 AWG | RS |
| MULTICAT PLUG TERMINAL, GOLD OVER NICKEL PHOSPHORUS PLATING, 8-10 AWG | RS Americas |
| MultiCat Male Crp Contact 40A 08-10AWG | Avnet America |
| MOLEX FPG003P204 Pin Contact MultiCat Crimp AWG 8-10 | Compona |
| MULTICAT MALE CRP CONTACT 40A 08-10AWG | element14 |
| Heavy Duty Power Connectors MULTICAT PLG CONTACT 8-10 AWG | Sager |
| MULTICAT MALE CRMP CONTACT 40A 08-10AWG | Heilind Americas |
| RECT PWR CONTACT, PIN, 10-8AWG, CRIMP | Farnell |
