2026542021 Pico-EZmate Slim by Molex

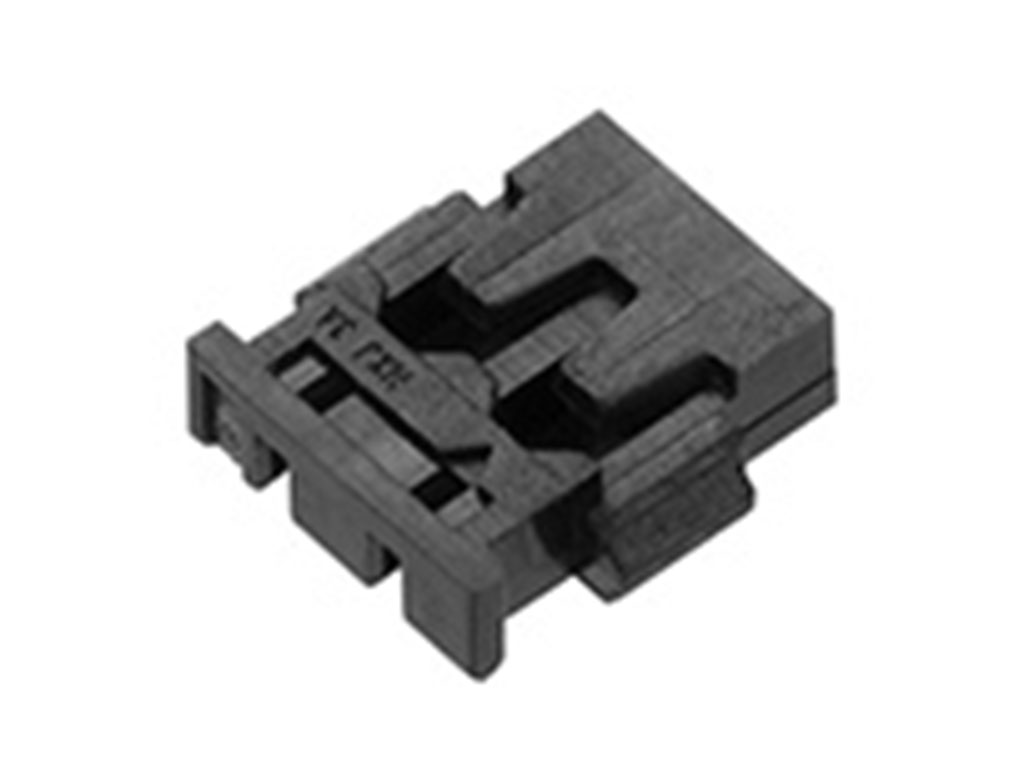

Pico-EZmate Slim Receptacle Housing, Friction Lock, 2 Circuits, Black
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 202654-2021 |
Specifications
| Product Name | Pico-EZmate Slim |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 8.160/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 1.20mm |
| Pitch Termination Interface | 1.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -25° to +85°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Picoezmate H=12Mm Receptacle Hsg Rohs Compliant: Yes |Molex 202654-2021 | Newark Electronics |
| CONNECTOR HOUSING, RCPT, 2POS, 1.2MM | Farnell |
| PICO-EZMATE SLIM RECPT HSNG WIRE-TO-BRD 2 CIRCUITS | Heilind Americas |
| PICOEZMATE H=12MM RECEPTACLE H | TTI Asia |
