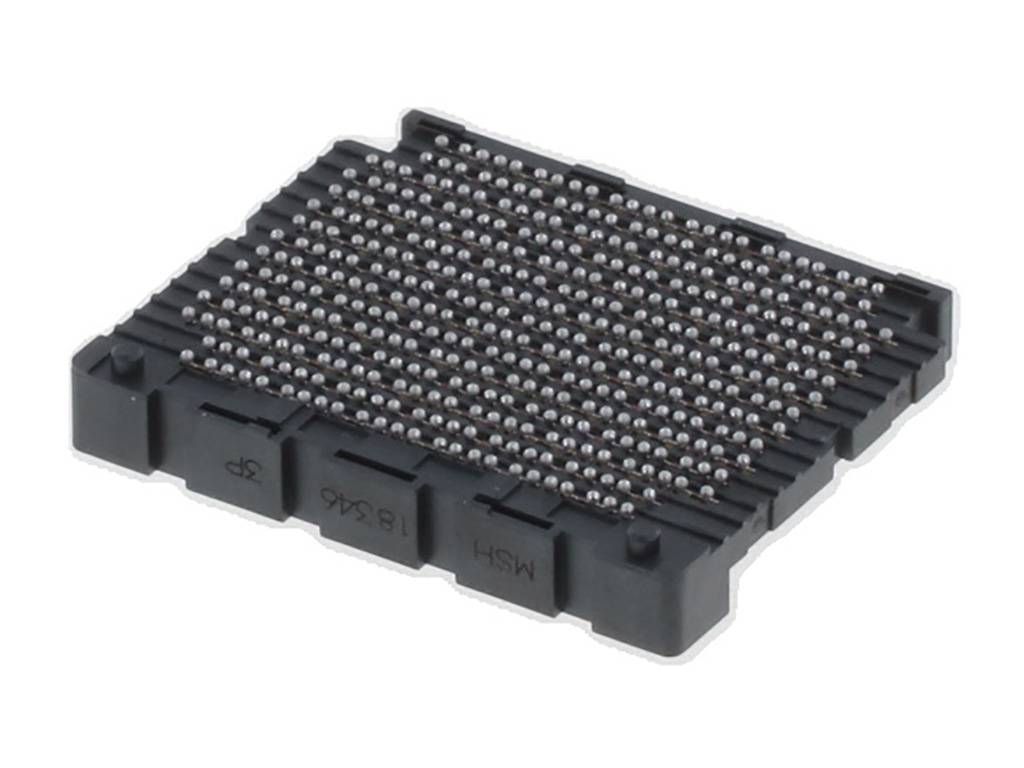

2028281506 Mirror Mezz by Molex
Mirror Mezz Hermaphroditic Connector, 2.50mm Connector Height, BGA-Attach Mounting, 6 Pair, 15 Row, 404 Circuits, 0.76µm Gold (Au) Plating, with Pegs
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 202828-1506 |
Where to Buy
Prices starting from US$45.49
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$89.76
|
0
in stock
|
Buy Now |
|
element14
from US$70.74
|
0
in stock
|
Buy Now |
|
Conrad
from US$53.91
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$62.64
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$53.00
|
0
in stock
|
Buy Now |
|
Farnell
from US$72.71
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$45.49
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mirror Mezz |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.75A (1 Oz Cu Trace), 1.2A (2 Oz Cu Trace) |
| Voltage Maximum | 30V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 404 |
| Circuits Maximum | 404 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Mated Height | 5.00mm |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.330/g |
| Number Of Rows | 15 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.50mm, 4.00mm |
| Plating Min Mating | 0.762µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | BGA Solder |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn, Stacking, Header, 404Pos, 15Row | Newark Electronics |
| CONN, STACKING, HEADER, 404POS, 15ROW | element14 |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 404 2028281506 1 St. Tape | Conrad |
| MEZZ CONN,HRMAPH,6PRX15ROW 2.5MM HT,BGA,30UAU | Heilind Americas |
| MIRROR MEZZ ASSY | TTI Asia |
| Conn Stacking HDR/RCP 404 POS 5mm Solder ST SMD Emboss T/R | Avnet Asia |
| Board to Board & Mezzanine Connectors MIRROR MEZZ ASSY | Sager |
