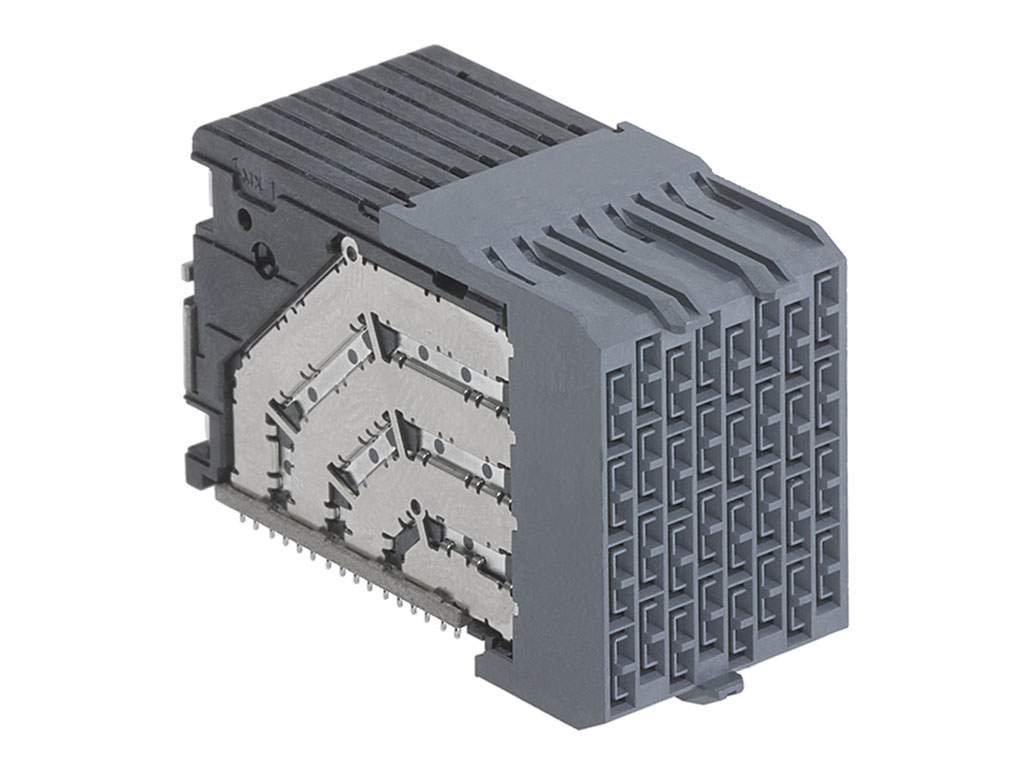

2040661138 Impel Plus by Molex
Impel Plus 90 Ohm, 4-Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 64 Circuits, Plated Through Hole Dimension 0.31mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 204066-1138 |
Where to Buy
Prices starting from US$30.75
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$44.97
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$30.75
|
0
in stock
|
Buy Now |
|
element14
from US$35.10
|
0
in stock
|
Buy Now |
|
Sager
from US$31.71
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$31.21
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$31.19
|
0
in stock
|
Buy Now |
|
Farnell
from US$39.05
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Impel Plus |
|---|---|
| Application | Coplanar, Daughtercard |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.75A |
| Data Rate | 56.0 Gbps |
| Impedance | 90Ω |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 29.9V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 64 |
| Circuits Maximum | 64 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 19.213/g |
| Number Of Columns | 8 |
| Number Of Pairs | 4 |
| Number Of Rows | 8 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.00mm |
| Pc Tail Length | 1.30mm |
| Pitch Mating Interface | 1.90mm |
| Pitch Termination Interface | 1.90mm |
| Plating Min Mating | 0.762µm |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 204066-1138 Backplane Connector | RS |
| Conn, Backplane, Rcpt, 64Pos, 1.9Mm | Newark Electronics |
| CONN, BACKPLANE, RCPT, 64POS, 1.9MM | element14 |
| High Speed / Modular Connectors IMPEL PLUS BP 4PX8C RA DC ASSY | Sager |
| IMPELPLUS,4PRX8C,1.9MM,92OHM RA DTR CRD,UNGUIDD,0.31MM TH | Heilind Americas |
