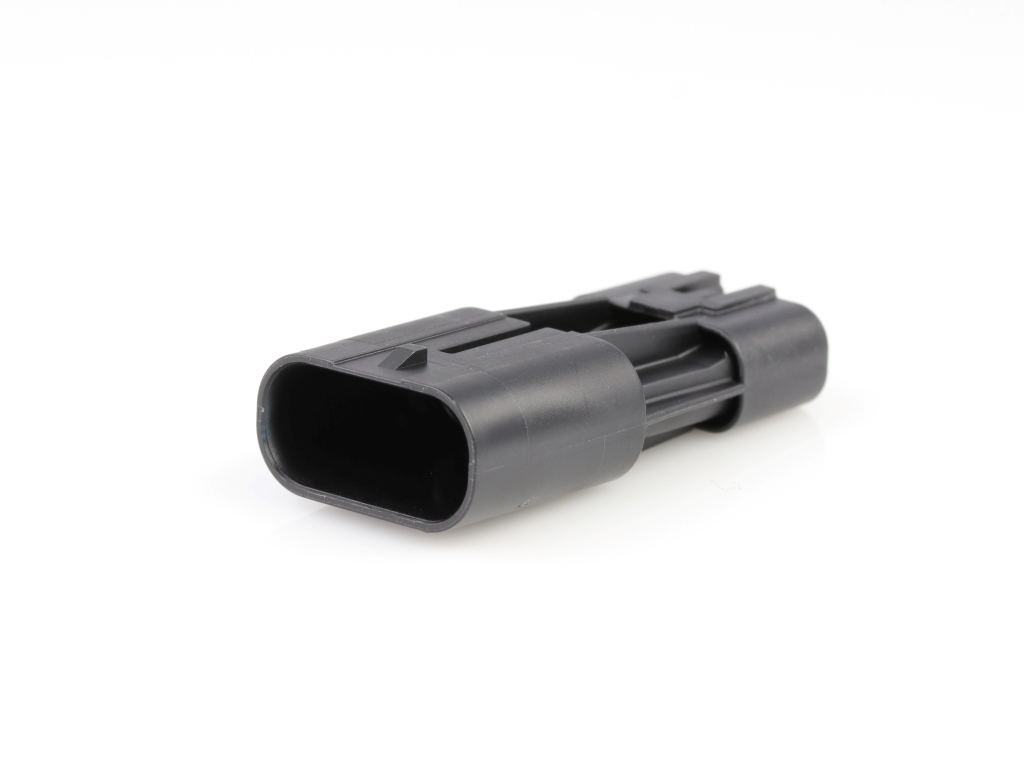

2042230006 Squba by Molex
Squba Sealed Plug Assembly, 1.80mm Pitch, Single Row, 6 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 204223-0006 |
Where to Buy
Prices starting from US$0.68
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.68
|
358
in stock
|
Buy Now |
|
Heilind Americas
from US$1.31
|
165
in stock
|
Buy Now |
|
RS
from US$2.18
|
150
in stock
|
Buy Now |
|
element14
from US$1.98
|
20
in stock
|
Buy Now |
|
Farnell
from US$2.25
|
20
in stock
|
Buy Now |
|
TTI Europe
from US$1.10
|
0
in stock
|
Buy Now |
|
Sager
from US$1.28
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.93
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Squba |
|---|---|
| Application | Power, Signal, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 6 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 3.340/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 1.80mm |
| Pitch Termination Interface | 1.80mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector Housing, Plug, 6Pos | Newark Electronics |
| CRMP PLUG,HSG,1.8MM,6CKT SQUBA SNGL RW SEALD ASSY,WTW | Heilind Americas |
| Molex 204223-0006 | RS |
| CONNECTOR HOUSING, PLUG, 6POS | element14 |
| PLUG ASSY 6CKT 1.8MM SLD | TTI Europe |
| Headers & Wire Housings SQUBA PLG WTW 1X06P | Sager |
