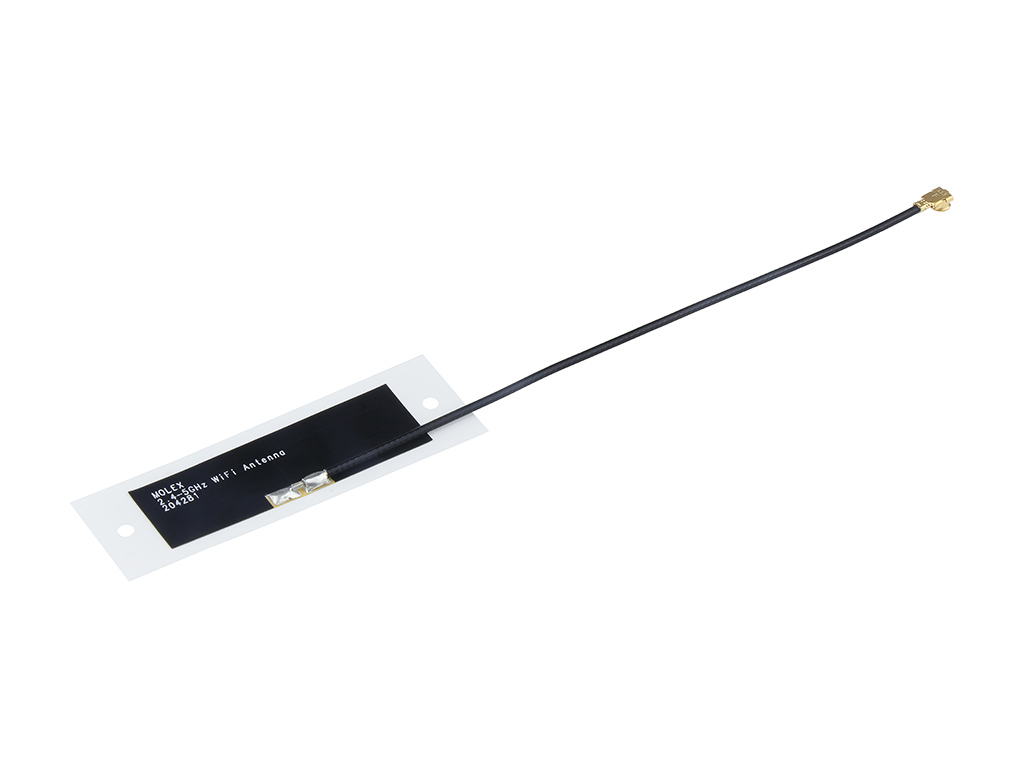

2042810100 2.4/5GHz Wi-Fi Antenna by Molex
Wi-Fi 6E Flex Cabled Side-Fed Balanced Antenna, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 204281-0100 |
Where to Buy
Prices starting from US$1.03
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.09
|
34,156
in stock
|
Buy Now |
|
Farnell
from US$2.00
|
30,780
in stock
|
Buy Now |
|
TTI Europe
from US$1.67
|
2,425
in stock
|
Buy Now |
|
Newark Electronics
from US$1.97
|
607
in stock
|
Buy Now |
|
element14
from US$1.78
|
607
in stock
|
Buy Now |
|
TME
from US$1.76
|
360
in stock
|
Buy Now |
|
Rutronik
from US$2.07
|
0
in stock
|
Buy Now |
|
RS
from US$2.19
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.36
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.24
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.03
|
0
in stock
|
Buy Now |
|
Sager
from US$1.40
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.31
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.08
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz Wi-Fi Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5850 |
| Band2f Start Mhz | 5150 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 2.0 @ 2.4 GHz, 3.3 @ 5 GHz |
| Return Loss S11db | < -10 |
| Total Efficiency | >65% @2.4 GHz, >68% @ 5 GHz |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Length | 35.00mm |
| Mounting Style | Adhesive |
| Net Weight | 0.668/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.10mm |
| Width | 11.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 204281-0100 Antenne 1 St. PET Film | Conrad |
| RF ANTENNA, 5.15 TO 5.85GHZ, 3.3DBI | Farnell |
| 2.4/5GHZ WI-FI ANTENNA | TTI Europe |
| Omni Antenna, Lin, 5.15-5.85Ghz, 3.3Dbi | Newark Electronics |
| OMNI ANTENNA, LIN, 5.15-5.85GHZ, 3.3DBI | element14 |
| Antenna | TME |
| WiFi 6E Flex Cabled Side-Fed Balanc. Ant | Rutronik |
| Dual Band WiFi Antenna with Side Solder | RS |
| Flexible Antenna, Dual Band, Linear, 2.4 GHz to 2.484 GHz, 5.15 GHz to 5.85 GHz, Adhesive Mount | Avnet America |
| WI-FI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA, 100MM CABLE LENGTH | RS Americas |
| 2.4GHZ/5GHZ WIFI ANTENNA | TTI Americas |
| Antennas 2.4GHZ/5GHZ WIFI ANTENNA | Sager |
| WI-FI ANTENNA, 2.4-5 GHZ 100MM LEAD | Heilind Americas |
