2043160018 Sentrality by Molex

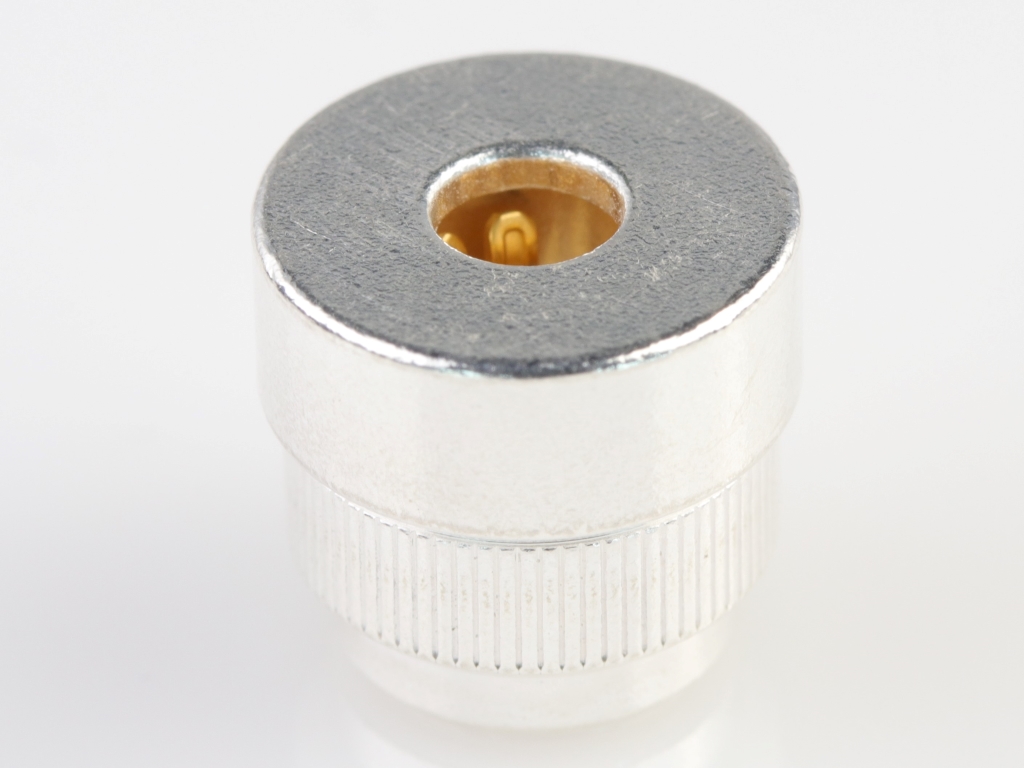

Sentrality 3.40mm Top-entry, Knurled Press-fit Socket Assembly, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 204316-0018 |
Where to Buy
Prices starting from US$1.27
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$6.80
|
840
in stock
|
Buy Now |
|
Newark Electronics
from US$1.27
|
488
in stock
|
Buy Now |
|
TME
from US$4.15
|
464
in stock
|
Buy Now |
|
Heilind Americas
from US$4.79
|
378
in stock
|
Buy Now |
|
RS
from US$5.68
|
35
in stock
|
Buy Now |
|
Avnet America
from US$2.81
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$4.49
|
0
in stock
|
Buy Now |
|
element14
from US$4.05
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.68
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$3.95
|
0
in stock
|
Buy Now |
|
Sager
from US$3.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.11
|
0
in stock
|
Buy Now |
|
Farnell
from US$3.98
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sentrality |
|---|---|
| Application | Busbar-to-Board, Busbar-to-Busbar |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 75.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 1 |
| Circuits Maximum | 1 |
| Diameter | 3.40mm |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Height Above Board | 4.00mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Silver |
| Mating Orientation | Top-entry |
| Net Weight | 4.983/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Retention | No |
| Pitch Mating Interface | N/A |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Press-Fit |
