2064600011 Micro-Fit+ by Molex

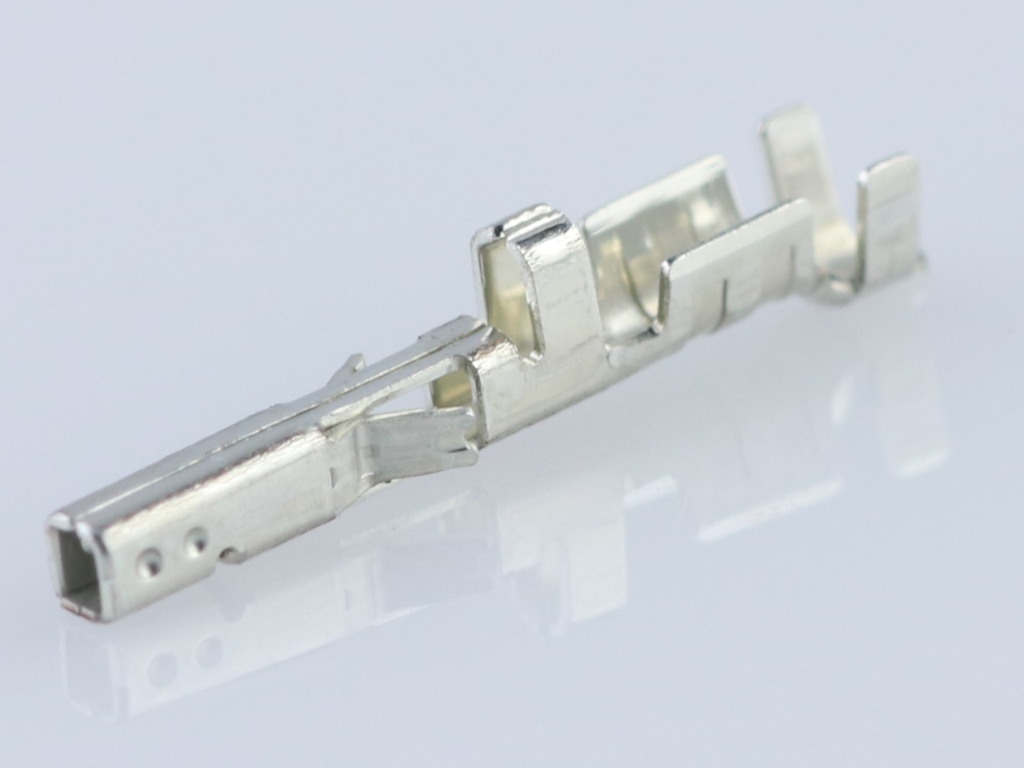

Micro-Fit+ Crimp Terminal, Female, Tin (Sn) Plating, 30-26 AWG
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 206460-0011 |
Where to Buy
Prices starting from US$0.0494
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.08
|
36,000
in stock
|
Buy Now |
|
element14
from US$0.07
|
36,000
in stock
|
Buy Now |
|
Farnell
from US$0.07
|
36,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.06
|
0
in stock
|
Buy Now |
|
Sager
from US$0.05
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0494
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.05
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.06
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit+ |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 6.6A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Female |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.087/g |
| Plating Min Mating | 2.500µm |
| Plating Min Termination | 2.500µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.27mm |
| Wire Size Awg | 26, 28, 30 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Micro-Fit Plus Femcrpter 26-30Awg | Newark Electronics |
| MICRO-FIT PLUS FEMCRPTER 26-30AWG | element14 |
| MICRO-FIT PLUS FEMCRPTER 26-30 | TTI Europe |
| Headers & Wire Housings MICRO-FIT+ CRMP TERM 26-30AWG | Sager |
| MICRO-FIT PLUS FEMCRPTER 26-3 AWG TIN LU | Heilind Americas |
| MICRO-FIT PLUS FEMCRPTER | TTI Asia |
