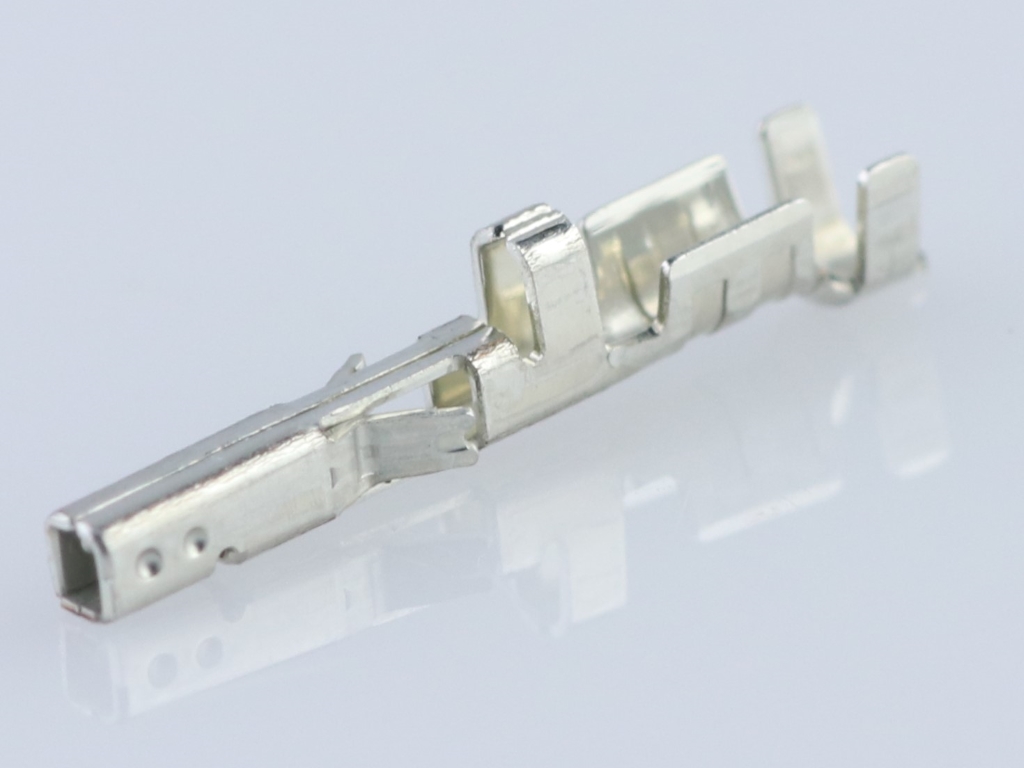

2064600041 Micro-Fit+ by Molex
Micro-Fit+ Crimp Terminal, Female, Tin (Sn) Plating, 16 AWG
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 206460-0041 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.34
|
41,188
in stock
|
Buy Now |
|
Newark Electronics
from US$0.33
|
27,485
in stock
|
Buy Now |
|
element14
from US$0.31
|
27,485
in stock
|
Buy Now |
|
Conrad
from US$0.25
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.11
|
0
in stock
|
Buy Now |
|
Sager
from US$0.10
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.09
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.10
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.10
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit+ |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Female |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.092/g |
| Plating Min Mating | 2.500µm |
| Plating Min Termination | 2.500µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 2.00mm |
| Wire Size Awg | 16 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT PLUS FEMCRPTER 16AWG TIN LU 10AH7846 | Farnell |
| Micro-Fit Plus Femcrpter 16Awg Tin Lu Rohs Compliant: Yes |Molex 206460-0041 | Newark Electronics |
| Molex 2064600041 Micro-Fit Plus Fem T 2064600041 Molex Inhalt: 1 St. | Conrad |
| MICRO-FIT+ CRIMP TERMINAL | TTI Europe |
| Headers & Wire Housings MICRO-FIT+ CRMP TERM 16AWG | Sager |
| MICRO-FIT PLUS FEMCRPTER 16AW TIN LU | Heilind Americas |
| MICRO-FIT+ CRMP TERM 16AWG | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 2064600041?
Additional datasheets, footprints and schematics for 2064600041 are listed on our Part Details page. You can also find images and similar parts to 2064600041 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 2064600041 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 2064600041 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 2064600041 fall under?
The 2064600041 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 2064600041 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 2064600041 you can contact the distributor directly for product support, shipping queries etc.
Is the 2064600041 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 2064600041 have stock available?
Authorised distributors including Farnell, Newark Electronics, element14, Conrad and TTI Europe have stock available or on a lead time for 2064600041.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 2064600041 often in real-time on the comparison pages.
What if I can't find stock of 2064600041?
You can fill out our help required form which you can use to request a quote for 2064600041 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
