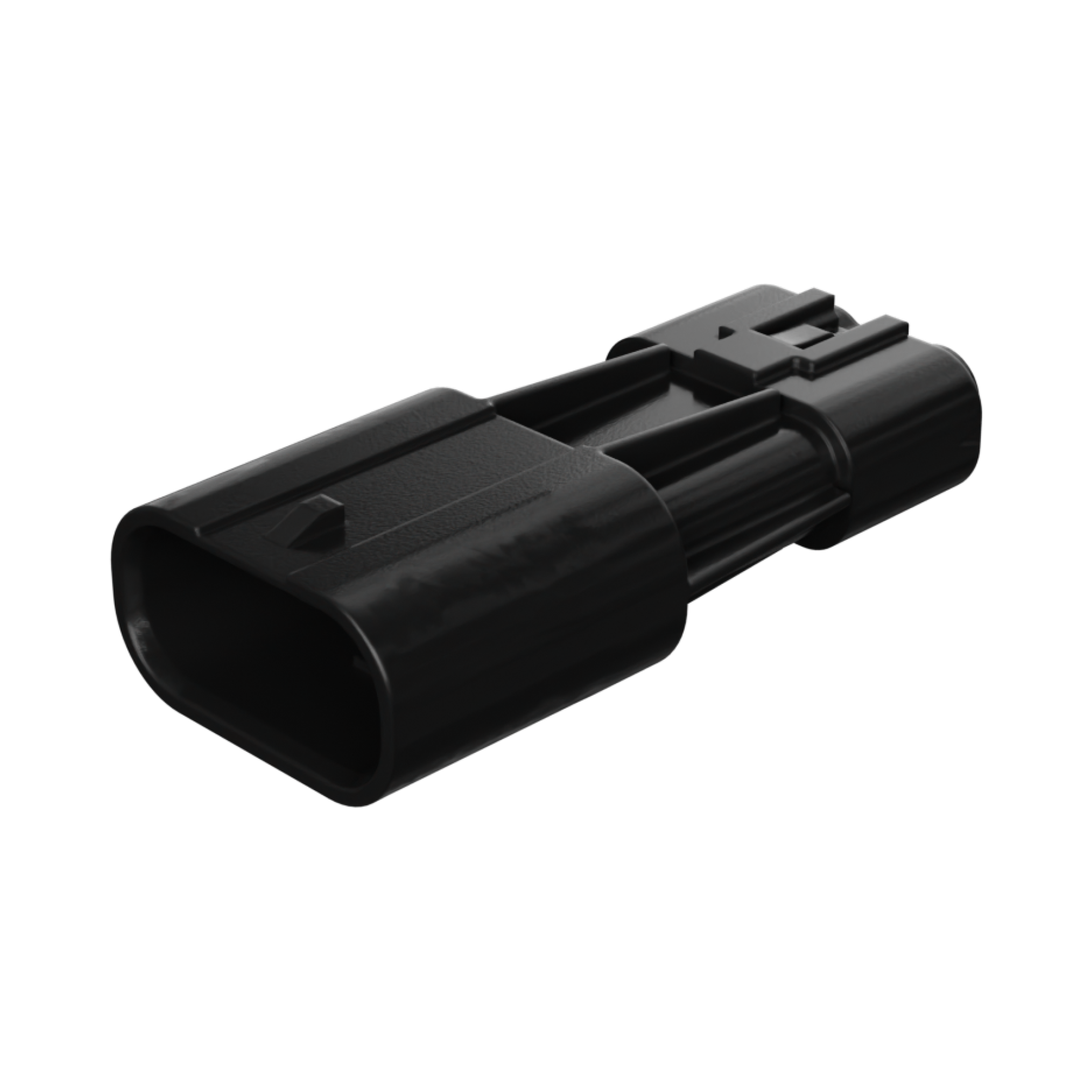

2077780003 Squba by Molex
Squba 3.6 Sealed Plug Assembly, 3.60mm Pitch, 3 Circuits, Single Row, Glow-Wire Capable, Black, UL1007/UL1061 Compatible
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 207778-0003 |
Where to Buy
Prices starting from US$0.92
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.12
|
14,345
in stock
|
Buy Now |
|
Farnell
from US$1.92
|
12,912
in stock
|
Buy Now |
|
TME
from US$1.08
|
7,910
in stock
|
Buy Now |
|
Heilind Americas
from US$1.48
|
261
in stock
|
Buy Now |
|
Newark Electronics
from US$1.74
|
36
in stock
|
Buy Now |
|
element14
from US$1.53
|
36
in stock
|
Buy Now |
|
RS
from US$1.44
|
0
in stock
|
Buy Now |
|
Sager
from US$1.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.92
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.67
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Squba |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 3 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 3.898/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.60mm |
| Pitch Termination Interface | 3.60mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Kabel 2077780003 1 St. Bulk | Conrad |
| CONNECTOR HOUSING, PLUG, 3POS, 3.6MM | Farnell |
| Connector: wire-wire | TME |
| WTW PLUG ASSY,3P,IP67, SQUBA 3.7 | Heilind Americas |
| Connector Housing, Plug, 3Pos, 3.6Mm Rohs Compliant: Yes |Molex 207778-0003 | Newark Electronics |
| Molex 207778-0003 | RS |
| Headers & Wire Housings SQUBA PLG WTW 1X03P | Sager |
| SQUBA PLG WTW 1X03P | TTI Asia |
