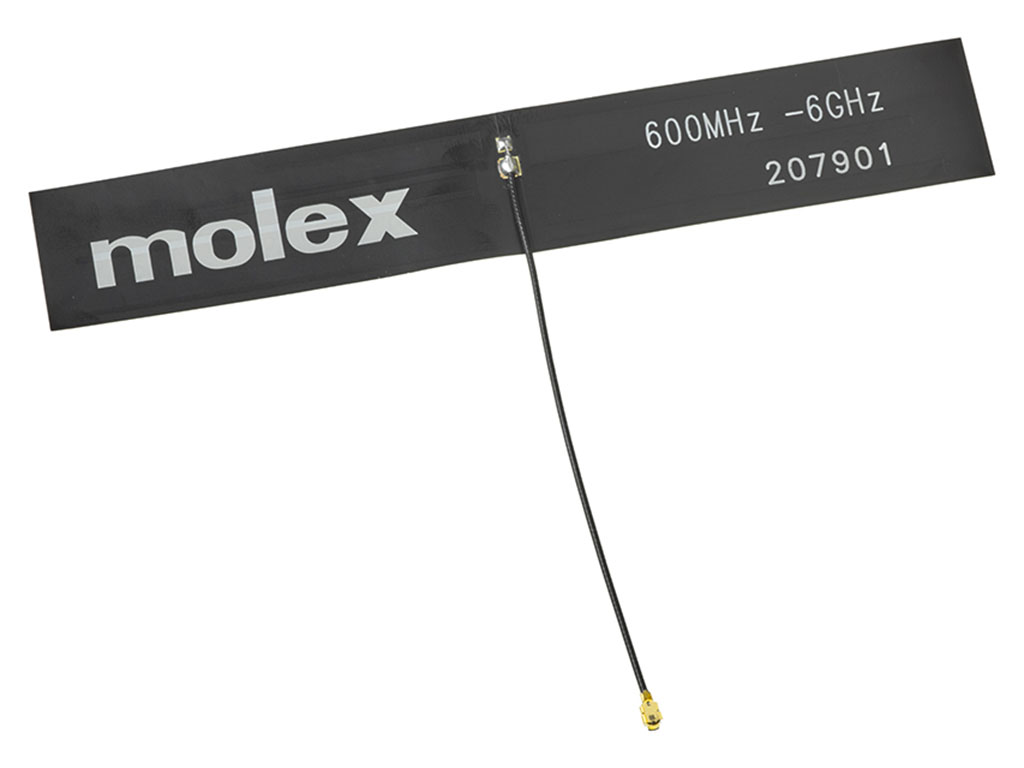

2079010100 600MHz-6GHz Flexible Antenna by Molex
600MHz-6GHz Monopole Low-profile Flexible Antenna, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 207901-0100 |
Where to Buy
Prices starting from US$3.34
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.55
|
4,519
in stock
|
Buy Now |
|
Farnell
from US$4.49
|
4,068
in stock
|
Buy Now |
|
RS
from US$3.45
|
297
in stock
|
Buy Now |
|
TME
from US$3.93
|
182
in stock
|
Buy Now |
|
Newark Electronics
from US$5.52
|
38
in stock
|
Buy Now |
|
element14
from US$4.16
|
38
in stock
|
Buy Now |
|
Avnet America
from US$3.34
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$5.31
|
0
in stock
|
Buy Now |
|
Sager
from US$4.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 600MHz-6GHz Flexible Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 960 |
| Band1f Start Mhz | 600 |
| Band2f End Mhz | 3000 |
| Band2f Start Mhz | 1500 |
| Band3f End Mhz | 6000 |
| Band3f Start Mhz | 3000 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 2.6 @ 600 MHz, 4.9 @ 1500 MHz, 5.4 @ 3 GHz |
| Return Loss S11db | < -3, < -5 |
| Total Efficiency | 65% @ 1500 MHz, 70% @ 3 GHz, 70% @ 600 MHz |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Length | 147.00mm |
| Mounting Style | Adhesive |
| Net Weight | 1.815/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.16mm |
| Width | 25.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 207901-0100 1 St. Tape on Full reel | Conrad |
| RF ANTENNA, 3 TO 6GHZ, 5.4DBI | Farnell |
| 600-6000MHz flexible antenna 100mm | RS |
| Antenna | TME |
| Cellular/3G Antenna, 3-6Ghz, 5.4Dbi Rohs Compliant: Yes |Molex 207901-0100 | Newark Electronics |
| CELLULAR/3G ANTENNA, 3-6GHZ, 5.4DBI | element14 |
| Flexible Antenna, Triple Band, Linear, 600 MHz to 960 MHz, 1.5 GHz to 3 GHz, 3 GHz to 6 GHz | Avnet America |
| 600-6000MHZ FLEXIBLE ANTENNA 100MM | RS Americas |
| Antennas MONOPOLE LOPRO FLEX ANTENNA | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 2079010100?
Additional datasheets, footprints and schematics for 2079010100 are listed on our Part Details page. You can also find images and similar parts to 2079010100 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 2079010100 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 2079010100 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 2079010100 fall under?
The 2079010100 is listed under Antennas.
Can I view similar or alternative parts?
You can view similar parts to 2079010100 when available in the Antennas range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 2079010100 you can contact the distributor directly for product support, shipping queries etc.
Is the 2079010100 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 2079010100 have stock available?
Authorised distributors including Conrad, Farnell, RS, TME and Newark Electronics have stock available or on a lead time for 2079010100.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 2079010100 often in real-time on the comparison pages.
What if I can't find stock of 2079010100?
You can fill out our help required form which you can use to request a quote for 2079010100 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
