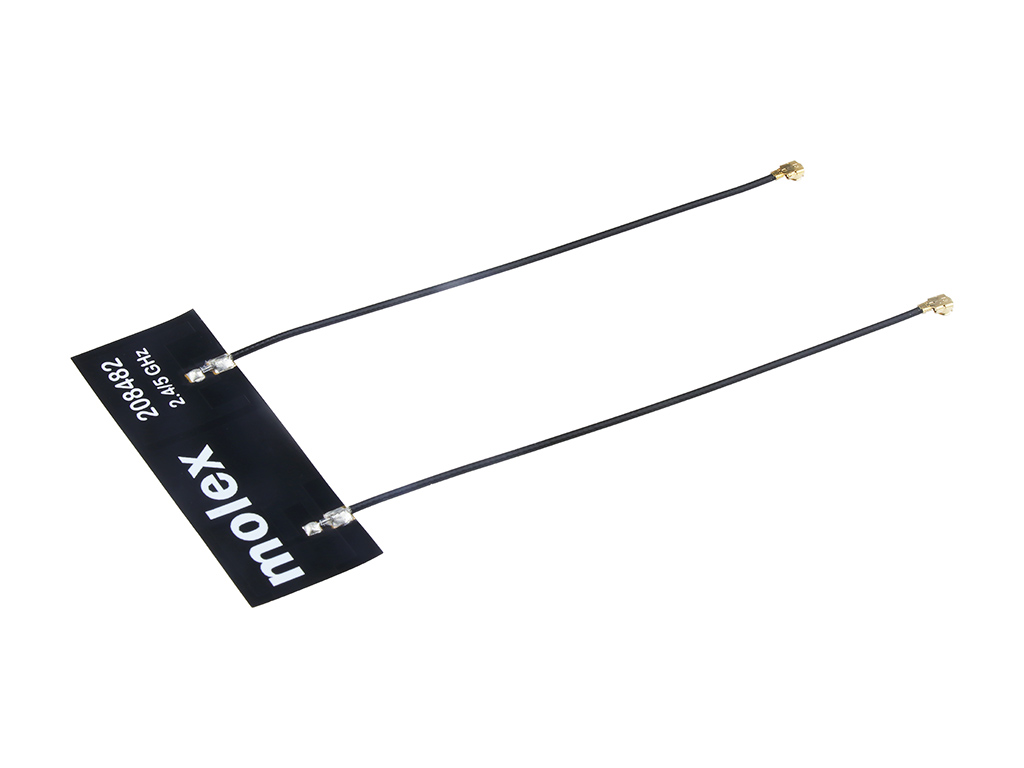

2084820100 2.4/5GHz Flexible Antenna by Molex
Wi-Fi 6E Flex Cabled 2x2 MIMO Antenna, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 208482-0100 |
Where to Buy
Prices starting from US$1.71
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.34
|
10,324
in stock
|
Buy Now |
|
Farnell
from US$2.89
|
9,293
in stock
|
Buy Now |
|
RS
from US$1.82
|
1,987
in stock
|
Buy Now |
|
Newark Electronics
from US$2.68
|
1,561
in stock
|
Buy Now |
|
TME
from US$2.10
|
325
in stock
|
Buy Now |
|
Avnet America
from US$1.71
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.93
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.76
|
0
in stock
|
Buy Now |
|
Sager
from US$2.09
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz Flexible Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5850 |
| Band2f Start Mhz | 5150 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 2.9 @ 2.4G, 5.0 @ 5G (Port 1), 3.4 @ 2.4G, 5.9 @ 5G (Port 2) |
| Return Loss S11db | < -8 < -13 (Port 1), < -9 < -13 (Port 2) |
| Total Efficiency | 65%@2.4GHz, 75%@5GHz (Port 1), 75%@2.4GHz, 70%@5GHz (Port 2) |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Length | 55.20mm |
| Mounting Style | Adhesive |
| Net Weight | 1.339/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.16mm |
| Width | 19.20mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 2084820100 1 St. Bulk | Conrad |
| RF ANTENNA, 5GHZ, 2.9DB | Farnell |
| 2.4/5GHz MIMO 2x2 flexible antenna 100mm | RS |
| Flexible Antenna, 2.4-5Ghz, Adhesive | Newark Electronics |
| Antenna | TME |
| Flexible Antenna, Dual Band, Linear, 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.85 GHz, Adhesive Mount | Avnet America |
| 2.4/5GHZ MIMO 2X2 FLEXIBLE ANTENNA 100MM | RS Americas |
| 2.4/5GHZ MIMO 2X2 FLEXIBLE | TTI Europe |
| Antennas 2.4GHZ/5GHZ FLEXIBLE ANTENNA | Sager |
