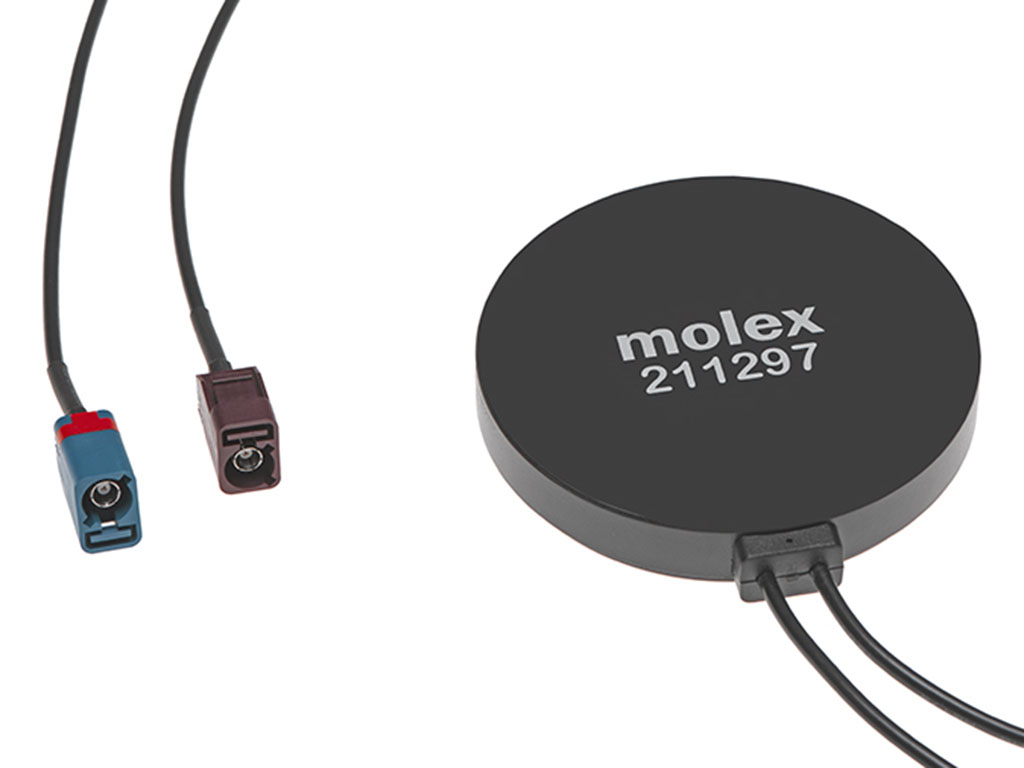

2112973000 2-in-1 External Antenna by Molex
2-in-1 4G/GPS and BD External Antenna, 77.00mm Diameter, 3.0m Cables with Fakra Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 211297-3000 |
Where to Buy
Prices starting from US$13.04
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$39.98
|
299
in stock
|
Buy Now |
|
Farnell
from US$43.25
|
270
in stock
|
Buy Now |
|
Heilind Americas
from US$24.32
|
45
in stock
|
Buy Now |
|
Newark Electronics
from US$36.28
|
13
in stock
|
Buy Now |
|
element14
from US$32.95
|
13
in stock
|
Buy Now |
|
RS
from US$19.43
|
4
in stock
|
Buy Now |
|
TTI Europe
from US$15.31
|
0
in stock
|
Buy Now |
|
Sager
from US$25.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$13.04
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2-in-1 External Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 960 |
| Band1f Start Mhz | 824 |
| Band2f End Mhz | 1575.42 |
| Band2f Start Mhz | 1561.098 |
| Band3f End Mhz | 2690 |
| Band3f Start Mhz | 1710 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | -0.8 @ 824 MHz, -2.1 @ 1561 MHz, -2.1 @ 1575 MHz, 0.4 @ 1710 MHz |
| Return Loss S11db | < -8,< -10 (see comments) |
| Total Efficiency | 22.1% @ 1575 MHz, 22.3% @ 1561 MHz, 26.8% @1710 MHz, 33.6% @ 824 MHz |
Physical |
|
|---|---|
| Cable Length | 3.0m |
| Mounting Style | Adhesive |
| Net Weight | 120.680/g |
| Outer Diameter | 77.00mm |
| Polarization | Linear, RHCP |
| Radiation Pattern | Bi-Directional (GPS), Omnidirectional (4G) |
| Thickness | 15.00mm |
| Width | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 2112973000 1 St. Box | Conrad |
| ANTENNAS - RF | Farnell |
| 4G/GPS 2IN1 EXT ANTENN, FAKRA, W/3.0M CBL | Heilind Americas |
| 2In1 (4G/Gps) Fakra With Cable 3M | Newark Electronics |
| 2IN1 (4G/GPS) FAKRA WITH CABLE 3M | element14 |
| Antenna 2in1 (4G/GPS)Fakra with cable 3m | RS |
| 2-IN-1 4G/GPS AND BD EXTERNAL | TTI Europe |
| Antennas 2IN1 (4G/GPS) FAKRA | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 2112973000?
Additional datasheets, footprints and schematics for 2112973000 are listed on our Part Details page. You can also find images and similar parts to 2112973000 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 2112973000 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 2112973000 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 2112973000 fall under?
The 2112973000 is listed under Antennas.
Can I view similar or alternative parts?
You can view similar parts to 2112973000 when available in the Antennas range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 2112973000 you can contact the distributor directly for product support, shipping queries etc.
Is the 2112973000 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 2112973000 have stock available?
Authorised distributors including Conrad, Farnell, Heilind Americas, Newark Electronics and element14 have stock available or on a lead time for 2112973000.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 2112973000 often in real-time on the comparison pages.
What if I can't find stock of 2112973000?
You can fill out our help required form which you can use to request a quote for 2112973000 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
