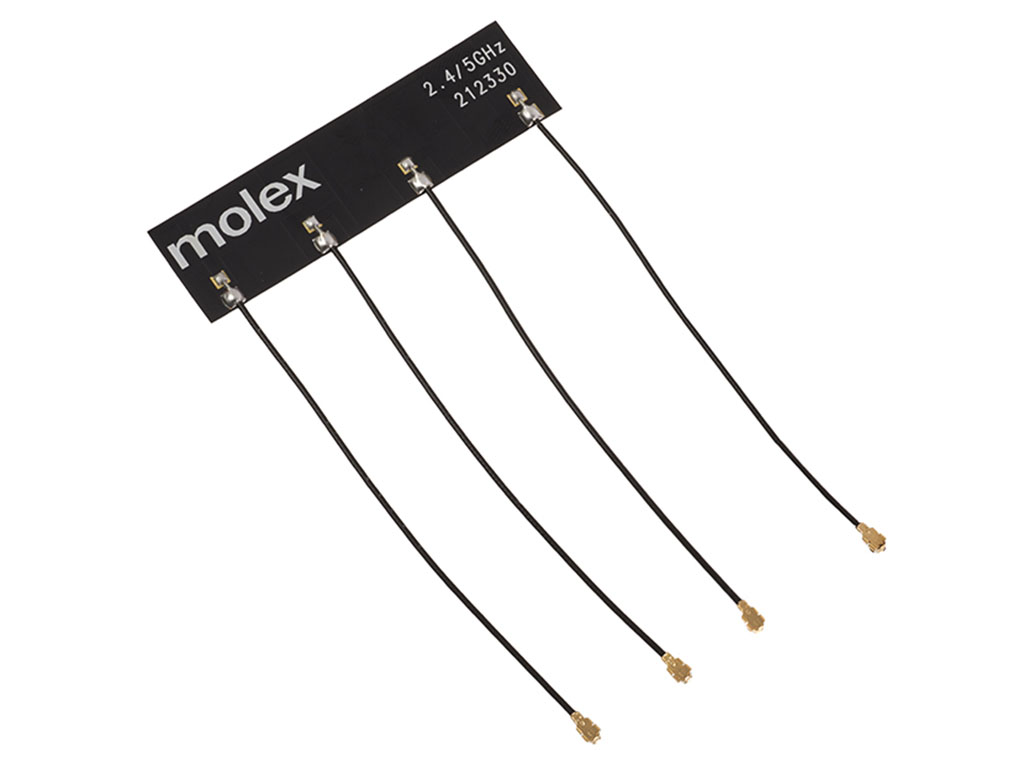

2123300100 2.4/5GHz Flexible Antenna by Molex
Wi-Fi 6E Flex Cabled 4x4 MIMO Antenna, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 212330-0100 |
Where to Buy
Prices starting from US$2.25
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$4.02
|
292
in stock
|
Buy Now |
|
Farnell
from US$3.35
|
292
in stock
|
Buy Now |
|
RS
from US$4.23
|
93
in stock
|
Buy Now |
|
TME
from US$4.24
|
48
in stock
|
Buy Now |
|
Avnet America
from US$2.57
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.71
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.83
|
0
in stock
|
Buy Now |
|
Sager
from US$3.27
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.21
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.25
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz Flexible Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5850 |
| Band2f Start Mhz | 5150 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 2.4 @ 2.4G, 3.3 @ 5G (Port 1), 2.6 @ 2.4G, 2.3 @ 5G (Port 2), 3.0 @ 2.4G, 3.4 @ 5G (Port 3), 3.5 @ 2.4G, 3.9 @ 5G (Port 4) |
| Return Loss S11db | < -10 (Port 1), < -10 (Port 3), < -10 (Port 4), < -10 < -9 (Port 2) |
| Total Efficiency | >50%@2.4GHz,>70%@5GHz (Port 3), >55%@2.4GHz,>65%@5GHz (Port 2), >55%@2.4GHz,>65%@5GHz (Port 4), >55%@2.4GHz,>70%@5GHz (Port 1) |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Length | 70.00mm |
| Mounting Style | Adhesive |
| Net Weight | 2.365/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.10mm |
| Width | 20.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mimo Wifi Antenna, 5.15-5.85Ghz, 3.9Dbi Rohs Compliant: Yes |Molex 212330-0100 | Newark Electronics |
| MIMO WIFI ANTENNA, 5.15-5.85GHZ, 3.9DBI | Farnell |
| 2.4/5GHz MIMO 4x4 flexible antenna 100mm | RS |
| Antenna | TME |
| Flexible Antenna, Dual Band, Linear, 2.4 GHz to 2.4835 GHz, 5.15 GHz to 5.85 GHz, Adhesive Mount | Avnet America |
| Molex 212330-0100 1 St. Bulk | Conrad |
| Antennas 2.4GHZ/5GHZ MIMO FLEX ANTENNA | Sager |
