2132250610 CLIK-Mate by Molex

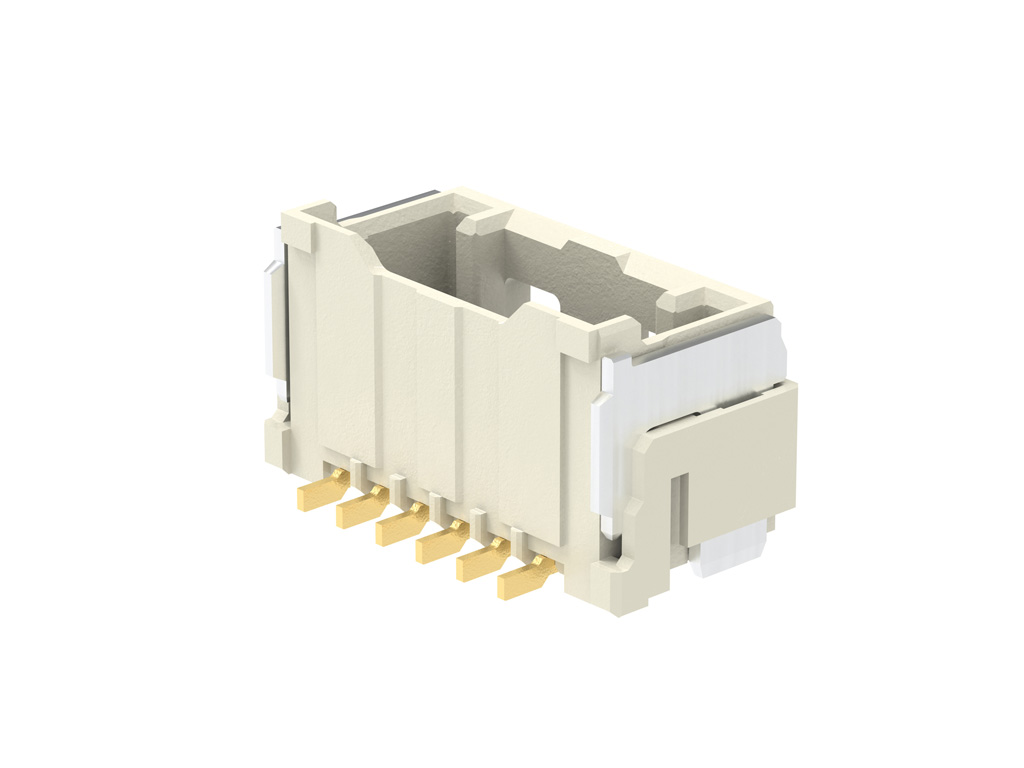

1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Surface Mount, Vertical, 0.10µm Gold (Au) Plating, 6 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 213225-0610 |
Where to Buy
Prices starting from US$0.63
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.99
|
6,300
in stock
|
Buy Now |
|
Conrad
from US$855.14
|
5,840
in stock
|
Buy Now |
|
TME
from US$0.86
|
3,600
in stock
|
Buy Now |
|
Newark Electronics
from US$0.92
|
3,216
in stock
|
Buy Now |
|
element14
from US$1.13
|
2,449
in stock
|
Buy Now |
|
RS
from US$0.88
|
0
in stock
|
Buy Now |
|
Sager
from US$0.69
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.63
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 100V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 568.000/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.50mm |
| Pitch Termination Interface | 1.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.102µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PCB RECEPTACLES PC BOARD CONNECTORS | Farnell |
| Molex Einbau-Buchsenleiste (Standard) 2132250610 900 St. Tape | Conrad |
| Contact | TME |
| Wtb Conn, Rcpt, 6Pos, 1Row, 1.5Mm | Newark Electronics |
| WTB CONN, RCPT, 6POS, 1ROW, 1.5MM | element14 |
| Molex 2132250610 PCB Connector | RS |
| Headers & Wire Housings 1.50MM CLIK-MATE REC 06P VT AU | Sager |
| CLIK-MATE1.5 SRVT SMT AU0.1 ET | Heilind Americas |
