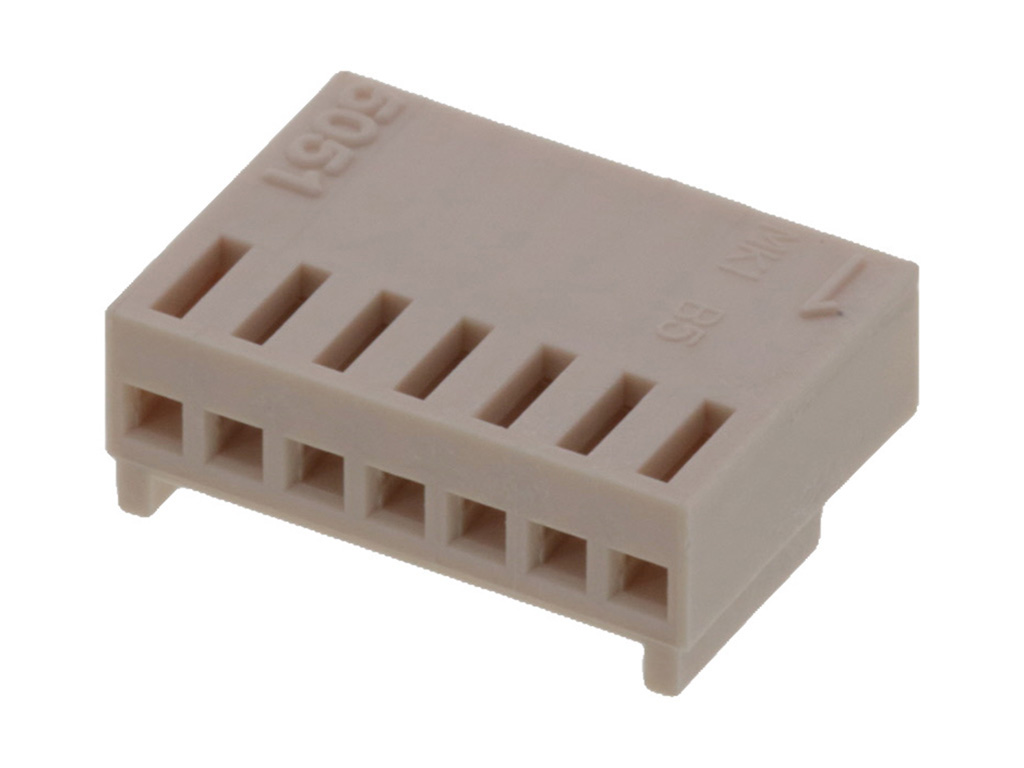

22011072 KK by Molex
2.50mm Pitch KK Wire-to-Board Housing, Female, Friction Lock, for 2759/5159 Crimp Terminals, 7 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-01-1072,
0022011072, 5051-07 |
Specifications
| Product Name | KK |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 7 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Material Resin | Nylon |
| Net Weight | 888.900/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.50mm |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, RCPT, 7POS, 1ROW, 2.5MM | element14 |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 7 Rastermaß: 2.50 mm 22011072 1 St. Bulk | Conrad |
