22012097 KK 254 by Molex

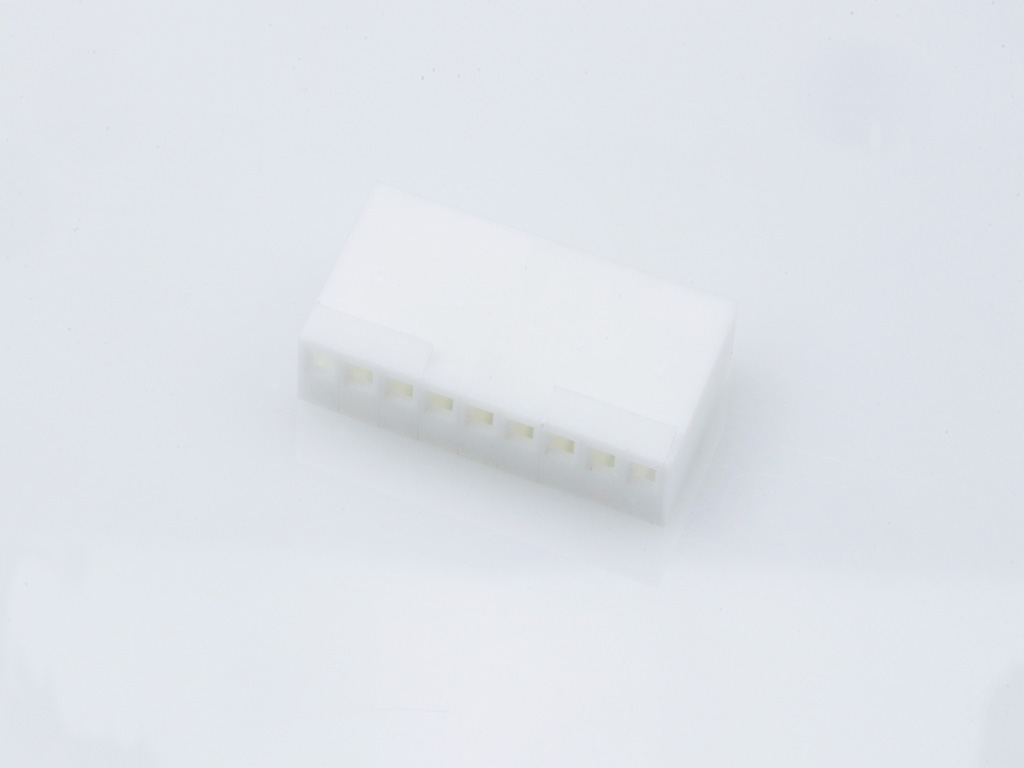

KK 254 Crimp Housing, Friction Ramp, 9 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-01-2097,
0022012097, 2695-09R |
Where to Buy
Prices starting from US$0.08
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.33
|
9,551
in stock
|
Buy Now |
|
TME
from US$0.12
|
6,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.31
|
1,011
in stock
|
Buy Now |
|
Avnet America
from US$0.10
|
590
in stock
|
Buy Now |
|
element14
from US$0.31
|
553
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.18
|
348
in stock
|
Buy Now |
|
Conrad
from US$0.08
|
348
in stock
|
Buy Now |
|
RS Americas
from US$0.17
|
17
in stock
|
Buy Now |
|
|
RS
from US$0.19
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.08
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 9 |
| Color Resin | Natural (White) |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 0.954/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Stackable | No |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PIN AND SOCKET CONNECTOR HOUSINGS | Farnell |
| Connector: wire-board | TME |
| Connector, Rcpt, 9Pos, 1Row, 2.54Mm | Newark Electronics |
| Conn Housing F 9 POS 2.54mm Crimp ST Cable Mount Bag | Avnet America |
| CONNECTOR, RCPT, 9POS, 1ROW, 2.54MM | element14 |
| Molex 22012097 Crimp Housing 9-pin 2.54mm Pitch Friction Ramp | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 9 Rastermaß: 2.54 mm 22012097 1 St. Bag | Conrad |
| 100 KK TERM HSG WLRAMP NYLON 9CKT | RS Americas |
| Molex 22-01-2097 Connector Housing | RS |
| 100 KK TERM HSG W/LRAMP NYLON 9CKT | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22012097?
Additional datasheets, footprints and schematics for 22012097 are listed on our Part Details page. You can also find images and similar parts to 22012097 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22012097 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22012097 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22012097 fall under?
The 22012097 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 22012097 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22012097 you can contact the distributor directly for product support, shipping queries etc.
Is the 22012097 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22012097 have stock available?
Authorised distributors including Farnell, TME, Newark Electronics, Avnet America and element14 have stock available or on a lead time for 22012097.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22012097 often in real-time on the comparison pages.
What if I can't find stock of 22012097?
You can fill out our help required form which you can use to request a quote for 22012097 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
