22012141 KK 254 by Molex

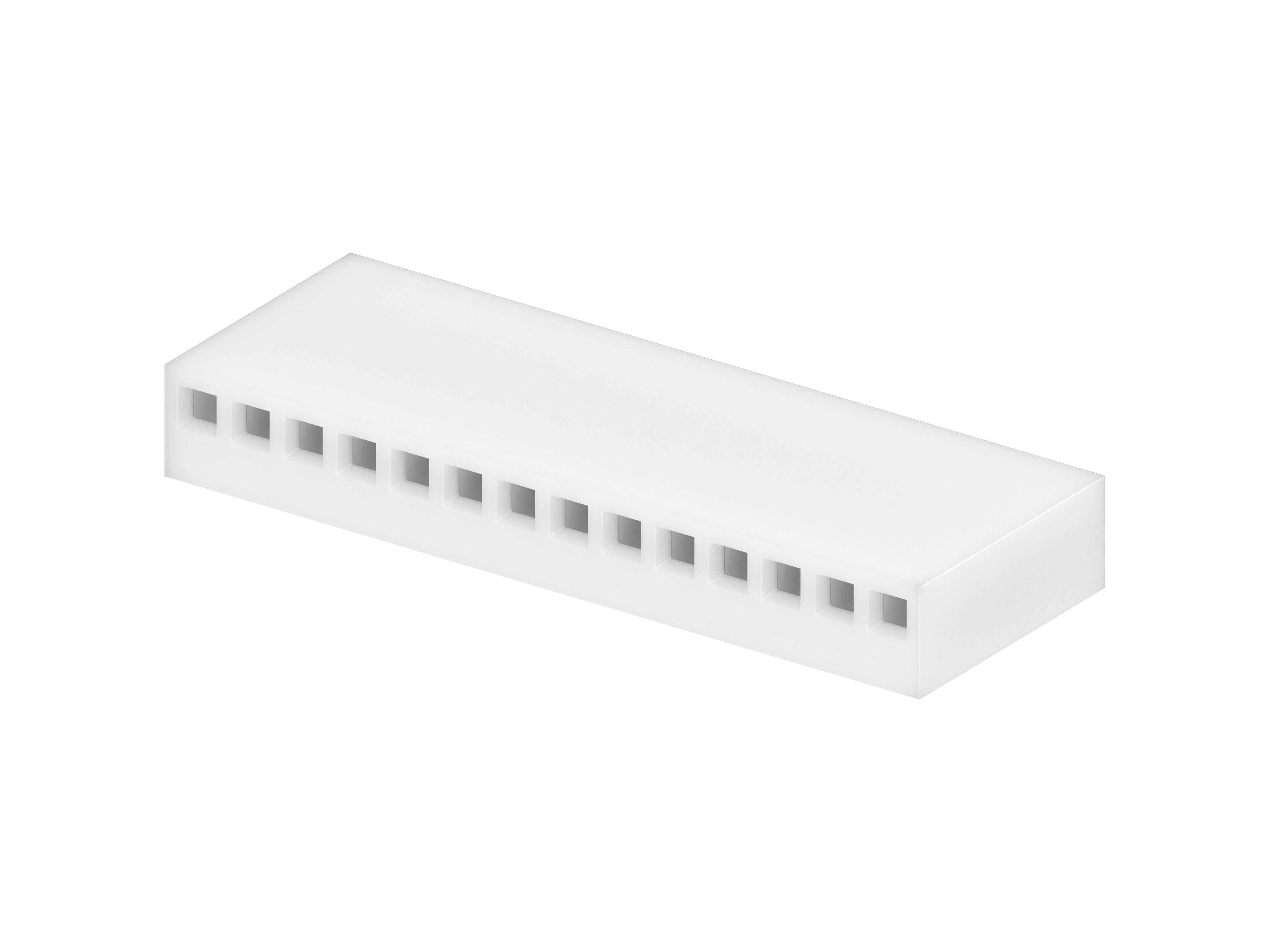

KK 254 Crimp Housing, 14 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-01-2141,
0022012141, 2695-14 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.19
|
3,642
in stock
|
Buy Now |
|
Farnell
from US$0.33
|
3,278
in stock
|
Buy Now |
|
Avnet America
from US$0.14
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.15
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.12
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.09
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Signal, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 14 |
| Color Resin | Natural (White) |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Material Resin | Nylon |
| Net Weight | 1.437/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Stackable | No |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 14Pos, 1Row, 2.54Mm | Newark Electronics |
| CONN HOUSING, RCPT, 14POS, 2.54MM, WHITE | Farnell |
| 100 KK TERM O/LRAMP WO/POR 14CKT | RS Americas |
| 100 KK TERM O/LRAMP WO/POR 14 KT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22012141?
Additional datasheets, footprints and schematics for 22012141 are listed on our Part Details page. You can also find images and similar parts to 22012141 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22012141 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22012141 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22012141 fall under?
The 22012141 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 22012141 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22012141 you can contact the distributor directly for product support, shipping queries etc.
Is the 22012141 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22012141 have stock available?
Authorised distributors including Newark Electronics, Farnell, Avnet America, RS Americas and Heilind Americas have stock available or on a lead time for 22012141.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22012141 often in real-time on the comparison pages.
What if I can't find stock of 22012141?
You can fill out our help required form which you can use to request a quote for 22012141 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
