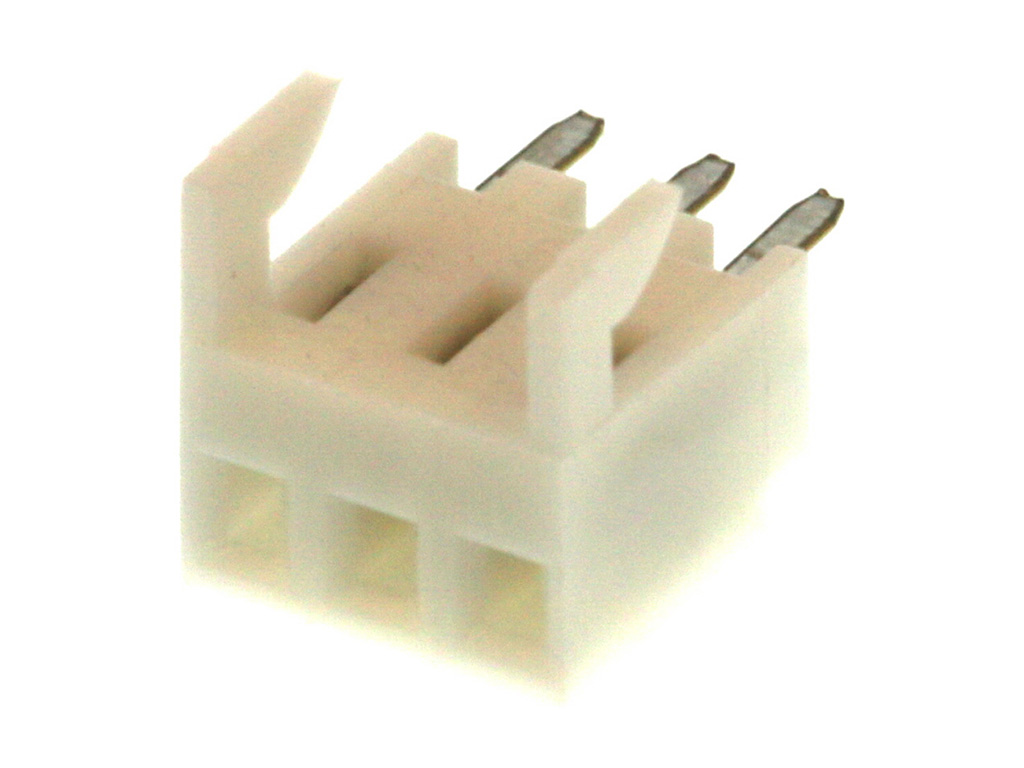

22022035 KK 254 by Molex
KK 254 PC Board Connector, Top Entry, End-to-End Stackable, 2.54µm Tin (Sn) Plating, 3 Circuits, with Hooks
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-02-2035,
0022022035, A-4455-CZ03A(P909) |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.38
|
4,264
in stock
|
Buy Now |
|
Farnell
from US$0.24
|
3,838
in stock
|
Buy Now |
|
TME
from US$0.26
|
1,968
in stock
|
Buy Now |
|
Newark Electronics
from US$0.31
|
175
in stock
|
Buy Now |
|
element14
from US$0.25
|
175
in stock
|
Buy Now |
|
RS
from US$0.37
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.17
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.19
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.16
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Grounding To Pcb | No |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.324/g |
| Number Of Rows | 1 |
| Orientation | Top Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.35mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 3 Rastermaß: 2.54 mm 22022035 1 St. Tray | Conrad |
| CONN, RCPT, 3POS, 2.54MM, TH | Farnell |
| Connector: wire-board | TME |
| Connector, Rcpt, 3Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, RCPT, 3POS, 1ROW, 2.54MM | element14 |
| Molex 22-02-2035 Header | RS |
| Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray | Avnet America |
| KK 100 PCB Assy Top 03 Ckt Tin | RS Americas |
| KK .100 REC 03P TOP ENTRY | TTI Americas |
| KK 100 PCB ASSY TOP 03 CKT TIN | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22022035?
Additional datasheets, footprints and schematics for 22022035 are listed on our Part Details page. You can also find images and similar parts to 22022035 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22022035 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22022035 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22022035 fall under?
The 22022035 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22022035 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22022035 you can contact the distributor directly for product support, shipping queries etc.
Is the 22022035 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22022035 have stock available?
Authorised distributors including Conrad, Farnell, TME, Newark Electronics and element14 have stock available or on a lead time for 22022035.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22022035 often in real-time on the comparison pages.
What if I can't find stock of 22022035?
You can fill out our help required form which you can use to request a quote for 22022035 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
