22041031 KK,Mini-Latch by Molex

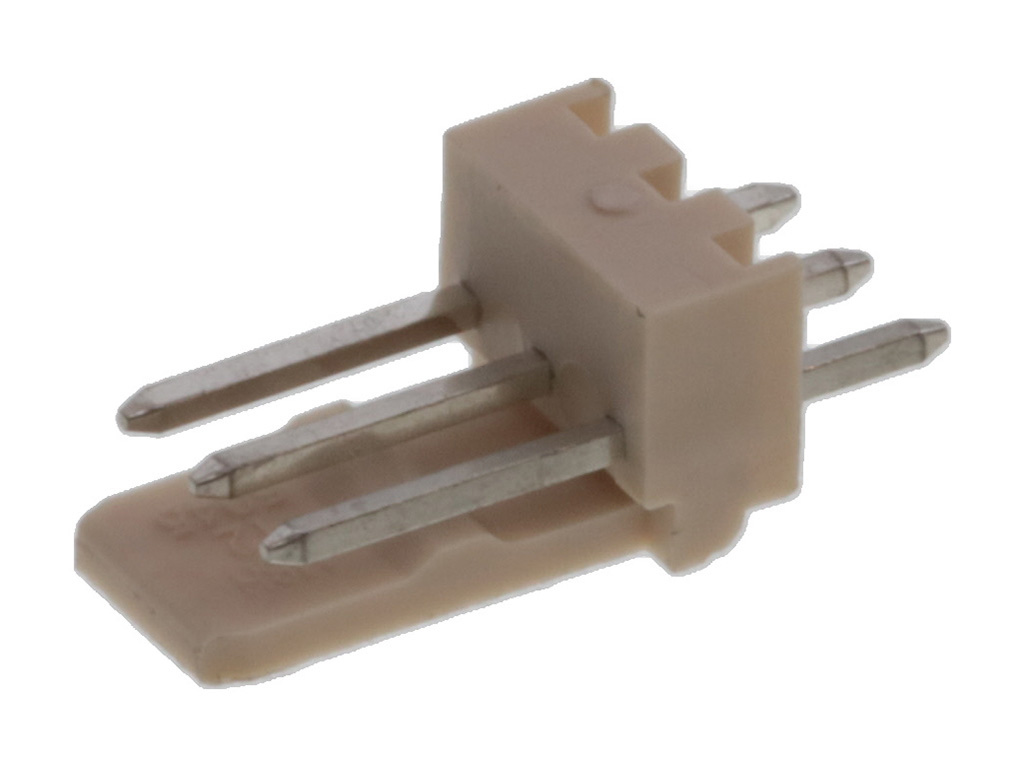

Mini-Latch / KK Wire-to-Board Header, Vertical, with Friction Ramp, 3 Circuits, Tin (Sn) Plating, Natural
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-04-1031,
0022041031, 5045-03A |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.50
|
23,867
in stock
|
Buy Now |
|
Farnell
from US$0.53
|
23,867
in stock
|
Buy Now |
|
TTI Europe
from US$0.38
|
14,200
in stock
|
Buy Now |
|
CoreStaff
from US$0.17
|
6,408
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.58
|
2,935
in stock
|
Buy Now |
|
Conrad
from US$0.23
|
2,935
in stock
|
Buy Now |
|
RS
from US$0.62
|
2,254
in stock
|
Buy Now |
|
TME
from US$0.45
|
1,052
in stock
|
Buy Now |
|
Heilind Americas
from US$0.39
|
6
in stock
|
Buy Now |
|
Avnet Abacus
-
|
55,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
125
in stock
|
Buy Now |
|
Avnet America
from US$0.38
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.62
|
0
in stock
|
Buy Now |
|
Compona
from US$0.16
|
0
in stock
|
Buy Now |
|
EME
from US$0.16
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK,Mini-Latch |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 324.000/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.40mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Wire-To-Board Connector, Vertical, Kk 5045 Series, Through Hole, Header, 3, 2.5 Mm Rohs Compliant: Yes |Molex 22-04-1031 | Newark Electronics |
| CONNECTOR, HEADER, 3POS, 1ROW, 2.5MM | Farnell |
| 2.50 MM HEADER VERTICAL P/L | TTI Europe |
| Molex 22041031 Mini-latch Header 3-pin 2.5mm Pitch Tin Plating | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 3 Rastermaß: 2.5 mm 22041031 1 St. Bag | Conrad |
| Molex 22-04-1031 Pin Header | RS |
| Connector: wire-board | TME |
| WFR ASSEM 3 CIR W/LOCK 504503A | Heilind Americas |
| Pin Header, Vertical, Wire-to-Board, 2.5 mm, 1 Rows, 3 Contacts, Through Hole Straight, KK 5045 | Avnet Abacus |
| HEADER 2.5MM WTB, VERT, FRICTION RAMP, 3W | RS Americas |
| MOLEX 22-04-1031 KK Wire-to-Board Header 180° 3p with Friction Ramp Tin (Sn) Plating | Compona |
| 03P PIN HEADER WITH POLARIZIN | Rutronik |
| Headers & Wire Housings WFR ASSEM 3 CIR W/LOCK 504503A | Sager |
| KK .098 HDR 03P VT SN | TTI Asia |
