22057028 KK 254 by Molex

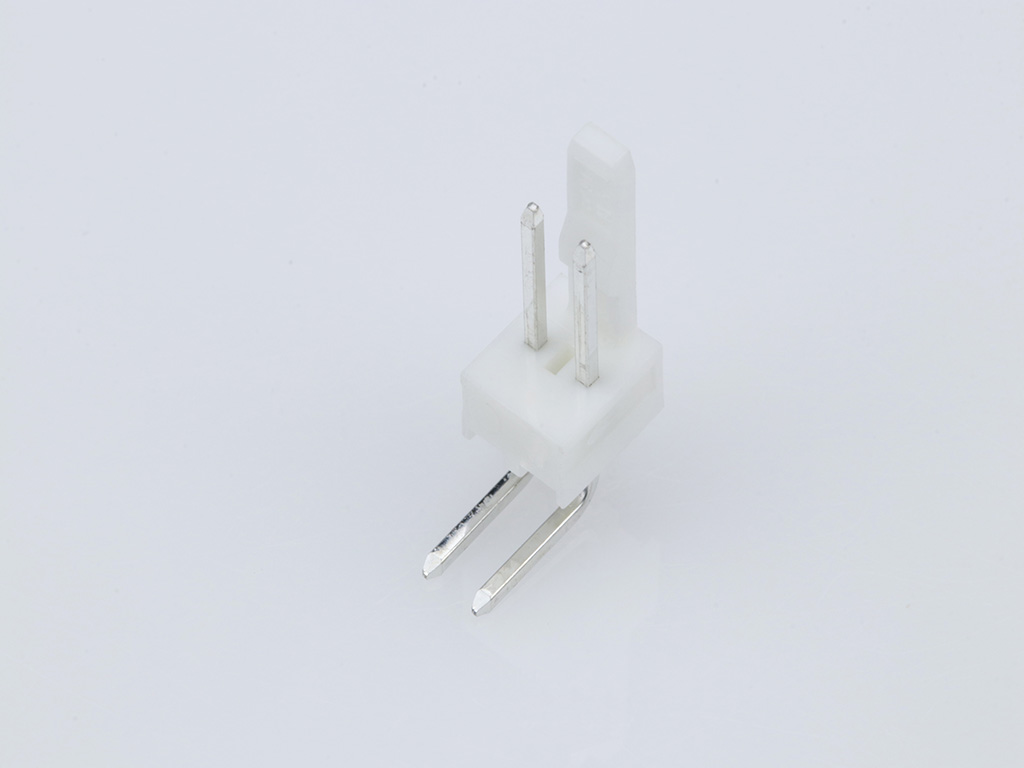

KK 254 Wire-to-Board Header, Right-Angle, with Friction Lock, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-05-7028,
0022057028, A-7395-2B |
Where to Buy
Prices starting from US$0.08
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.18
|
60,200
in stock
|
Buy Now |
|
Farnell
from US$0.36
|
50,811
in stock
|
Buy Now |
|
Newark Electronics
from US$0.29
|
29,237
in stock
|
Buy Now |
|
Heilind Americas
from US$0.43
|
22,953
in stock
|
Buy Now |
|
element14
from US$0.29
|
19,426
in stock
|
Buy Now |
|
RS
from US$0.52
|
6,716
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.49
|
1,227
in stock
|
Buy Now |
|
Conrad
from US$0.08
|
1,227
in stock
|
Buy Now |
|
Rutronik
from US$0.08
|
0
in stock
|
Buy Now |
|
Compona
from US$0.09
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.08
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.16
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.254/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.80mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 2.54 MM KK HEADER RT ANGLE F/L | TTI Europe |
| CONN, HEADER, 2POS, 1ROW, 2.54MM | Farnell |
| Kk 254 Wire-To-Board Header Right-Angle With Fric |Molex 22-05-7028 | Newark Electronics |
| 2.54MM KK HDR RA FRICLK 5SN 2 KT | Heilind Americas |
| CONNECTOR, HEADER, 2POS, 1ROW, 2.54MM | element14 |
| Molex 22-05-7028 Pin Header | RS |
| Molex 22057028 KK 254 2-pin 2.54mm Header Right-angle Friction Lock | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 2.54 mm 22057028 1 St. Bag | Conrad |
| 02P KK PIN HEADER W LOCK 90° | Rutronik |
| MOLEX 22-05-7028 Plug Square 2p THT 90° | Compona |
| KK .100 HDR 02P RA SN | TTI Asia |
