22102041 KK 254 by Molex

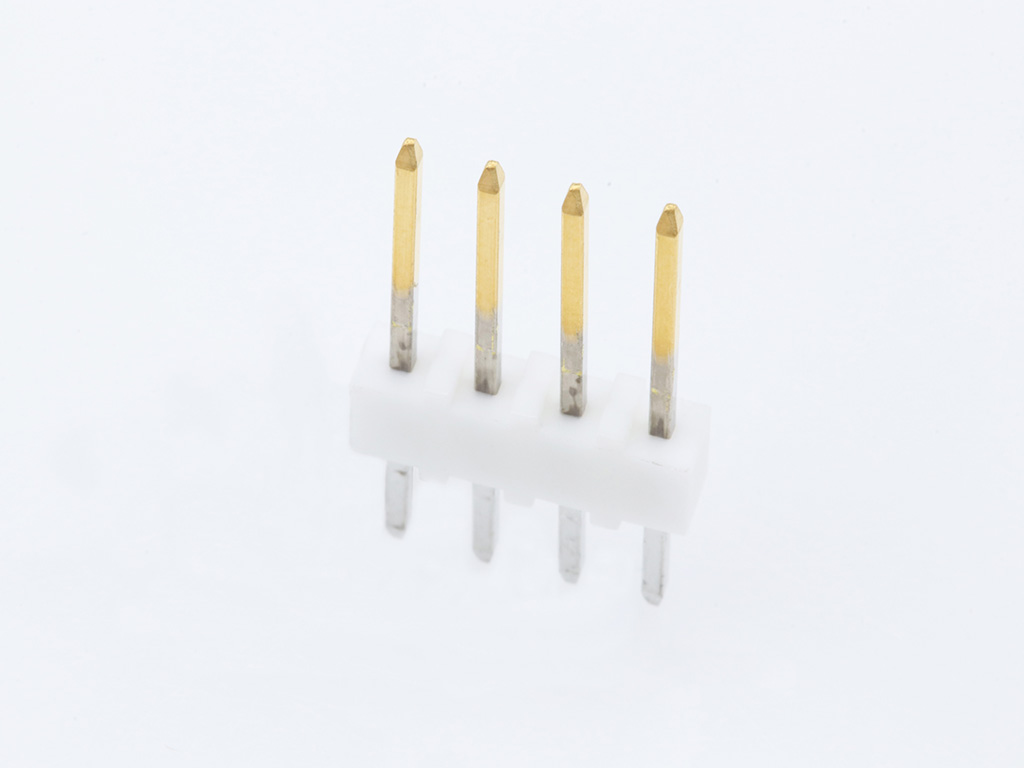

KK 254 Wire-to-Board Header, Single Row, Vertical, 4 Circuits, PA Polyamide Nylon, Gold (Au) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-10-2041,
0022102041, A-4030-04A241 |
Where to Buy
Prices starting from US$0.33
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.55
|
55,455
in stock
|
Buy Now |
|
Farnell
from US$0.48
|
49,910
in stock
|
Buy Now |
|
TME
from US$0.34
|
25,698
in stock
|
Buy Now |
|
TTI Americas
from US$0.59
|
16,800
in stock
|
Buy Now |
|
Newark Electronics
from US$0.66
|
12,767
in stock
|
Buy Now |
|
element14
from US$0.41
|
12,767
in stock
|
Buy Now |
|
Heilind Americas
from US$0.46
|
100
in stock
|
Buy Now |
|
RS
from US$0.62
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.47
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.56
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.33
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.266/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.43mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.508µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftleiste (Standard) Polzahl Gesamt 4 Rastermaß: 2.54 mm 22102041 1 St. Bulk | Conrad |
| CONN, HEADER, 4POS, 1ROW, 2.54MM | Farnell |
| 22-10-2041 | TME |
| KK .100 HDR 04P VT AU | TTI Americas |
| Connector, Header, 4Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, HEADER, 4POS, 1ROW, 2.54MM | element14 |
| KK 100 HDR FLAT VERT 20 AU 4C T | Heilind Americas |
| Molex 22-10-2041 PCB Header | RS |
| Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 4 Contacts, Through Hole Straight, KK 254 4030 Series | Avnet America |
| HEADERS, VERT PCB HDR 4P GOLD PLATING | RS Americas |
| 2.54 MM KK WTB HEADER VERTICAL | TTI Europe |
