22122064 KK 254 by Molex

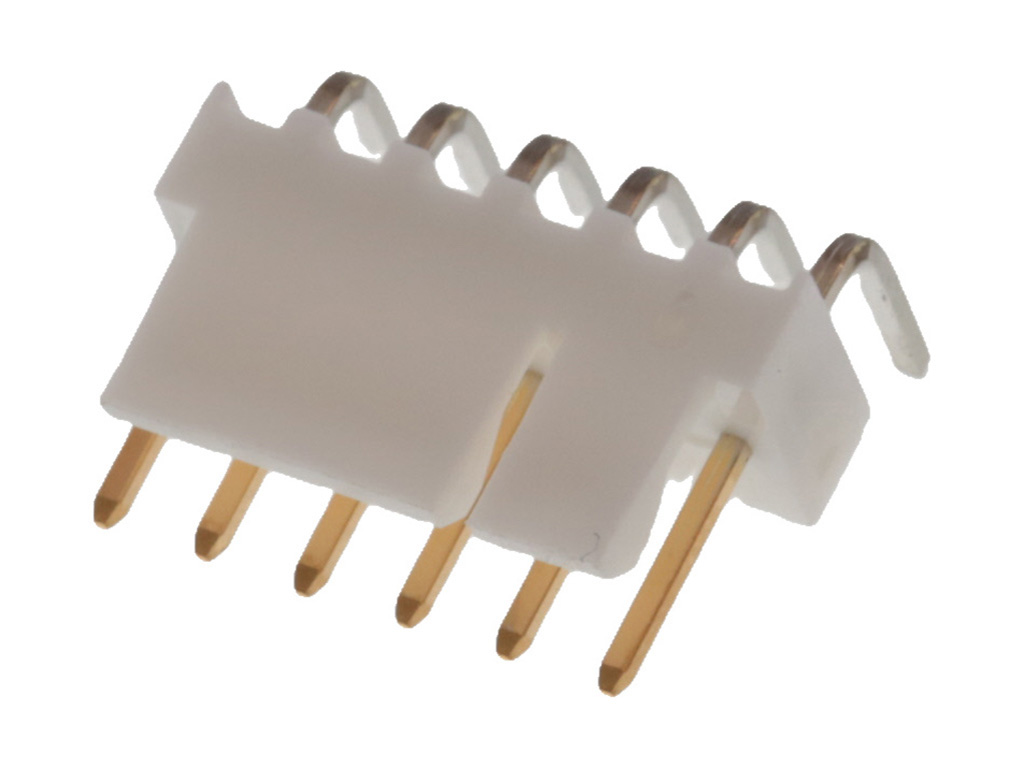

KK 254 Solid Header, Right-Angle, with Friction Lock, 6 Circuits, 0.51µm Gold (Au) Plating, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-12-2064,
0022122064, A-7478-06A241 |
Where to Buy
Prices starting from US$0.55
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.98
|
13,000
in stock
|
Buy Now |
|
Farnell
from US$1.35
|
8,136
in stock
|
Buy Now |
|
TTI Americas
from US$0.97
|
4,813
in stock
|
Buy Now |
|
Newark Electronics
from US$1.14
|
316
in stock
|
Buy Now |
|
RS
from US$0.55
|
170
in stock
|
Buy Now |
|
TME
from US$0.71
|
130
in stock
|
Buy Now |
|
element14
from US$0.58
|
119
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.39
|
22
in stock
|
Buy Now |
|
Conrad
from US$0.58
|
22
in stock
|
Buy Now |
|
Offical Electronic
-
|
600
in stock
|
Buy Now |
|
Avnet America
from US$1.04
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.58
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.55
|
0
in stock
|
Buy Now |
|
EME
from US$0.57
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V AC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.782/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.58mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Partially Shrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK 100 HDR FRLK RTAN 06 CKT GO | Heilind Americas |
| CONN, HEADER, 6POS, 1ROW, 2.54MM | Farnell |
| KK .100 HDR 06P RA 20AU | TTI Americas |
| Wire-Board Connector, Header, 6 Position, 2.54Mm | Newark Electronics |
| Molex 22-12-2064 Pin Header | RS |
| Connector: wire-board | TME |
| CONNECTOR, HEADER, 6POS, 1ROW, 2.54MM | element14 |
| Molex 22122064 KK 254 Pin Strip 6 Pins Right-angle 2.54mm Gold Plated | Rapid Electronics |
| Molex Stiftleiste (Standard) Polzahl Gesamt 6 Rastermaß: 2.54 mm 22122064 1 St. Bulk | Conrad |
| Pin Header, Right Angle, Wire-to-Board, 2.54 mm, 1 Rows, 6 Contacts, Through Hole Right Angle | Avnet America |
| HEADERS R/A PCB HDR 6P GOLD FRICTION LOCK | RS Americas |
| 2.54 MM KK HEADER RT ANGLE F/L | TTI Europe |
