22122101 KK 254 by Molex

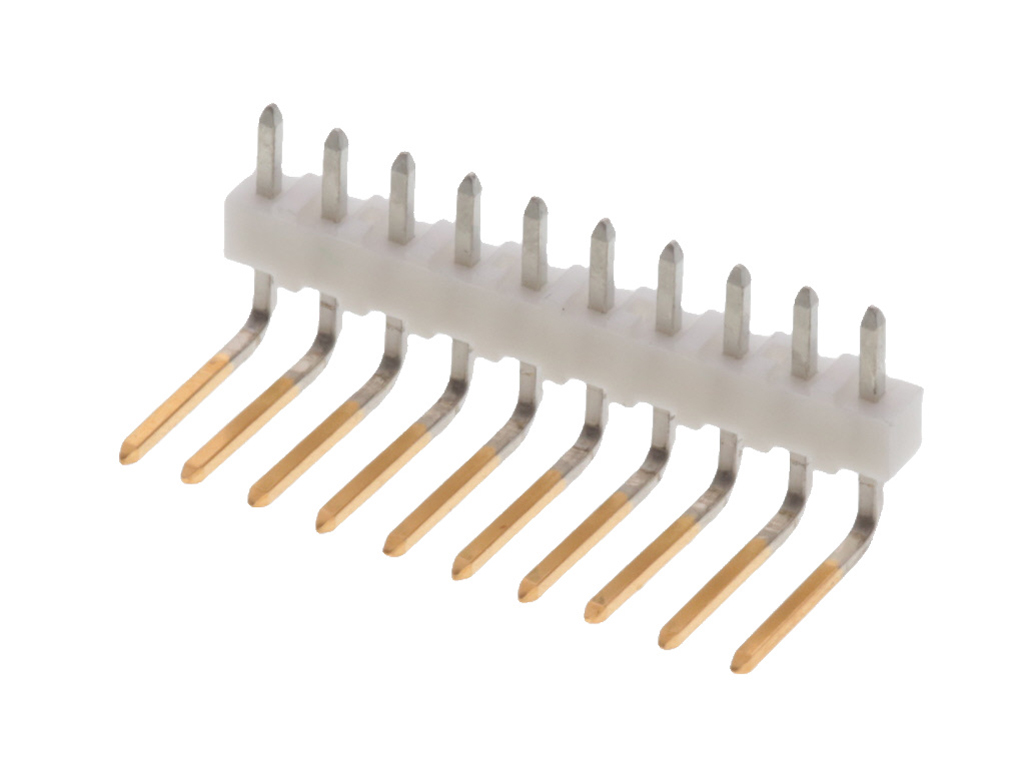

KK 254 Wire-to-Board Header, Single Row, Right-Angle, 10 Circuits, PA Polyamide Nylon, Gold (Au) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-12-2101,
0022122101, A-4094-10A241 |
Where to Buy
Prices starting from US$0.25
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.38
|
2,709
in stock
|
Buy Now |
|
Farnell
from US$1.02
|
2,709
in stock
|
Buy Now |
|
Newark Electronics
from US$0.25
|
20
in stock
|
Buy Now |
|
RS Americas
from US$1.10
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.42
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.75
|
0
in stock
|
Buy Now |
|
EME
from US$1.00
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Net Weight | 0.796/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.15mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, HEADER, 10POS, 1ROW, 2.54MM | element14 |
| Connector, Header, 10Pos, 1Row, 2.54Mm | Newark Electronics |
| .100 PITCH KK WIRE TO BOARD HEADER, RIGHT ANGLE, 10 POSITION | RS Americas |
| KK 100 HDR FLAT RTAN 10CKT GO D | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22122101?
Additional datasheets, footprints and schematics for 22122101 are listed on our Part Details page. You can also find images and similar parts to 22122101 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22122101 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22122101 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22122101 fall under?
The 22122101 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22122101 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22122101 you can contact the distributor directly for product support, shipping queries etc.
Is the 22122101 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22122101 have stock available?
Authorised distributors including element14, Farnell, Newark Electronics, RS Americas and Heilind Americas have stock available or on a lead time for 22122101.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22122101 often in real-time on the comparison pages.
What if I can't find stock of 22122101?
You can fill out our help required form which you can use to request a quote for 22122101 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
