22124072 KK 254 by Molex

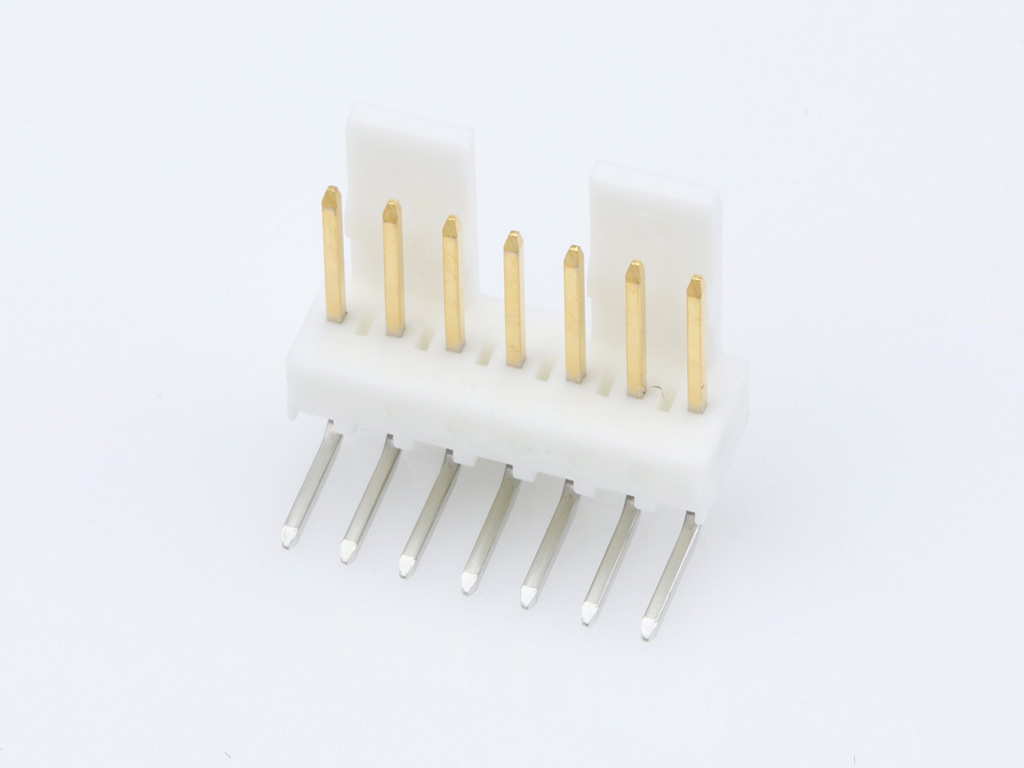

KK 254 Wire-to-Board Header, Right-Angle, with Friction Lock, 7 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-12-4072,
0022124072, 739507BG |
Where to Buy
Prices starting from US$0.63
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.56
|
2,250
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
2,250
in stock
|
Buy Now |
|
TME
from US$0.81
|
226
in stock
|
Buy Now |
|
Newark Electronics
from US$1.05
|
108
in stock
|
Buy Now |
|
element14
from US$0.90
|
108
in stock
|
Buy Now |
|
RS
from US$0.95
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.72
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.96
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.69
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.63
|
0
in stock
|
Buy Now |
|
EME
from US$0.79
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 7 |
| Circuits Maximum | 7 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.870/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.80mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Polarized To Pcb | Yes |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
