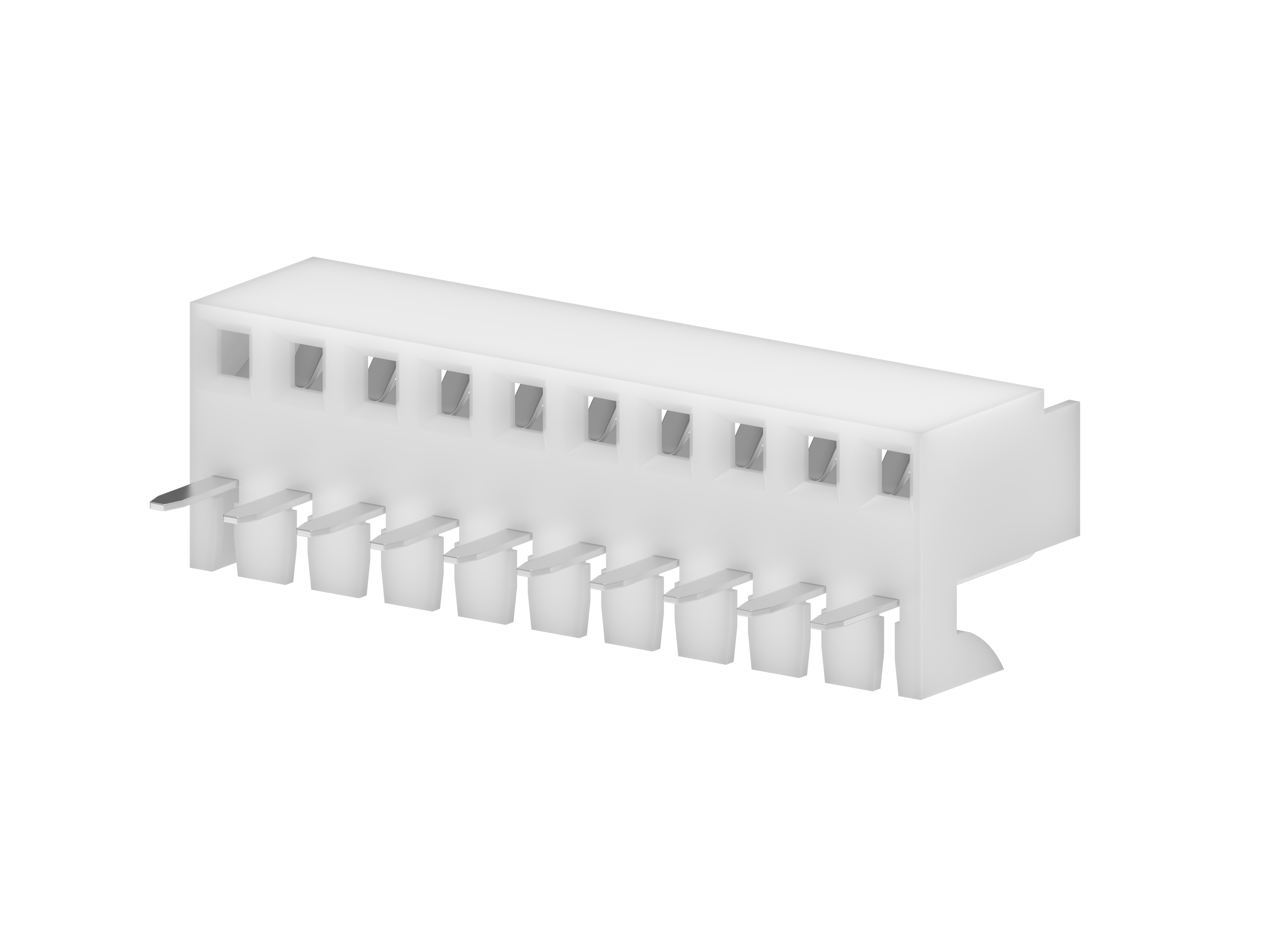

22172102 KK 254 by Molex
KK 254 PC Board Connector, Bottom Entry, End-to-End Stackable, 0.51µm Gold (Au) Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-17-2102,
0022172102, A-4455-BH10D(565) |
Where to Buy
Prices starting from US$0.89
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.47
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.02
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.54
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.29
|
0
in stock
|
Buy Now |
|
Sager
from US$2.43
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.89
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.196/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.35mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Board-Board Connector Receptacle, 10Way, 1Row | Newark Electronics |
| Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Tray | Avnet America |
| KK 100 PCB ASSY BTM 10 CKT GOLD | RS Americas |
| KK .100 REC 10P BTM ENTR 20AU | TTI Americas |
| Headers & Wire Housings KK 100 PCB Assy Btm 10 Ckt Gold | Sager |
| KK 100 PCB ASSY BTM 10 CKT GO D | Heilind Americas |
