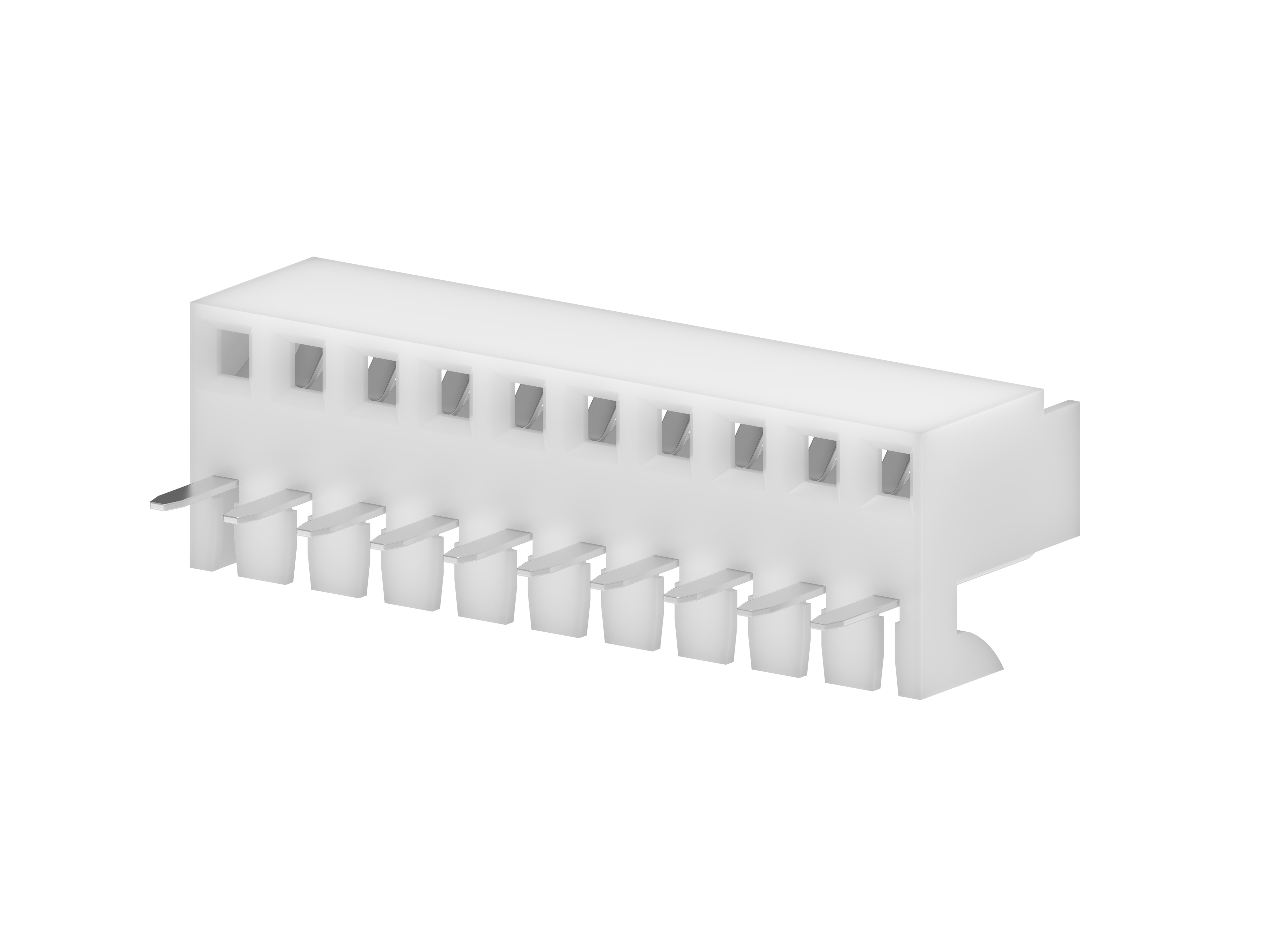

22173102 KK 254 by Molex
KK 254 PC Board Connector, Bottom Entry, End-to-End Stackable, 0.38µm Gold (Au) Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-17-3102,
0022173102, A-4455-BH10D(208) |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.20
|
1
in stock
|
Buy Now |
|
RS
from US$1.88
|
0
in stock
|
Buy Now |
|
Compona
from US$0.86
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.44
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.98
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.71
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.76
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Grounding To Pcb | No |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.196/g |
| Number Of Rows | 1 |
| Orientation | Bottom Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.35mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 10Pos, 1Row, 2.54Mm | Newark Electronics |
| Molex 22-17-3102 PCB Socket | RS |
| MOLEX 22173102 Socket Square 10p THT | Compona |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 10 Rastermaß: 2.54 mm 22173102 1 St. Tray | Conrad |
| KK 100 PCB ASSY BTM 10 CKT GO D | Heilind Americas |
| CONNECTOR, RCPT, 10POS, 1ROW, 2.54MM | Farnell |
