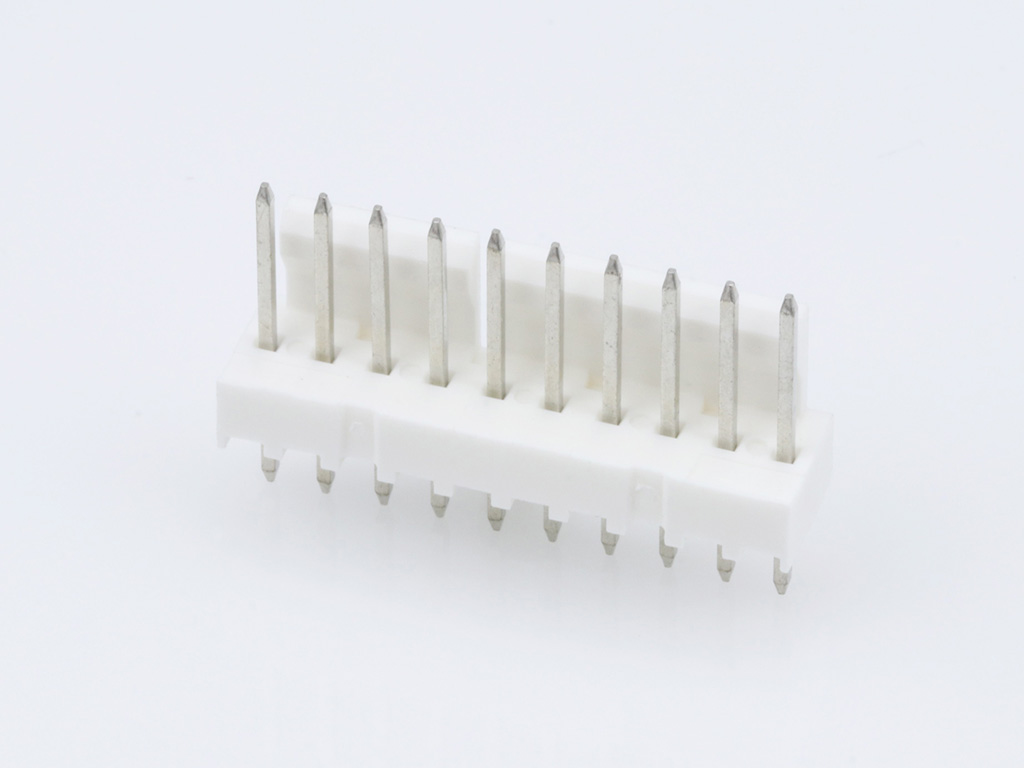

22232101 KK 254 by Molex
KK 254 Solid Header, Vertical, with Friction Lock, 10 Circuits, 2.54µm Matte Tin (Sn) Plating, 3.56mm Tail Length, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-23-2101,
0022232101, A-6373-10A222 |
Where to Buy
Prices starting from US$0.15
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.24
|
17,025
in stock
|
Buy Now |
|
Newark Electronics
from US$0.37
|
14,101
in stock
|
Buy Now |
|
Avnet America
from US$0.23
|
14,101
in stock
|
Buy Now |
|
Sager
from US$0.23
|
10,934
in stock
|
Buy Now |
|
RS Americas
from US$0.45
|
1,047
in stock
|
Buy Now |
|
TTI Americas
from US$0.26
|
896
in stock
|
Buy Now |
|
TME
from US$0.26
|
691
in stock
|
Buy Now |
|
|
RS
from US$0.50
|
260
in stock
|
Buy Now |
|
Conrad
from US$0.55
|
156
in stock
|
Buy Now |
|
Farnell
from US$0.40
|
141
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
590
in stock
|
Buy Now |
|
Avnet Abacus
-
|
475
in stock
|
Buy Now |
|
element14
from US$0.38
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.15
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.25
|
0
in stock
|
Buy Now |
|
EME
from US$0.20
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 1.161/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.56mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK 100 HDR FRLK VERT 10 CKT T N | Heilind Americas |
| Kk 100 Hdr Frlk Vert 10 Ckt Tin Rohs Compliant: Yes |Molex 22-23-2101 | Newark Electronics |
| Pin Header, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 10 Contacts, Through Hole Straight, KK 254 6373 | Avnet America |
| Headers & Wire Housings KK 100 Hdr FrLk Vert 10 Ckt Tin | Sager |
| HEADERS VERT PCB HDR 10P TIN FRICTION LOCK | RS Americas |
| KK .100 HDR 10P VT SN | TTI Americas |
| Connector: wire-board | TME |
| Molex 22-23-2101 Pin Header | RS |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 10 Rastermaß: 2.54 mm 22232101 1 St. Bag | Conrad |
| CONNECTORS | Farnell |
| CONNECTOR, HEADER, 10POS, 1ROW, 2.54MM | element14 |
| 2.54 MM KK HEADER VERTICAL 10C | TTI Europe |
| KK 100 HDR FRLK VERT 10 CKT TIN | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22232101?
Additional datasheets, footprints and schematics for 22232101 are listed on our Part Details page. You can also find images and similar parts to 22232101 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22232101 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22232101 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22232101 fall under?
The 22232101 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22232101 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22232101 you can contact the distributor directly for product support, shipping queries etc.
Is the 22232101 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22232101 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, Avnet America, Sager and RS Americas have stock available or on a lead time for 22232101.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22232101 often in real-time on the comparison pages.
What if I can't find stock of 22232101?
You can fill out our help required form which you can use to request a quote for 22232101 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
