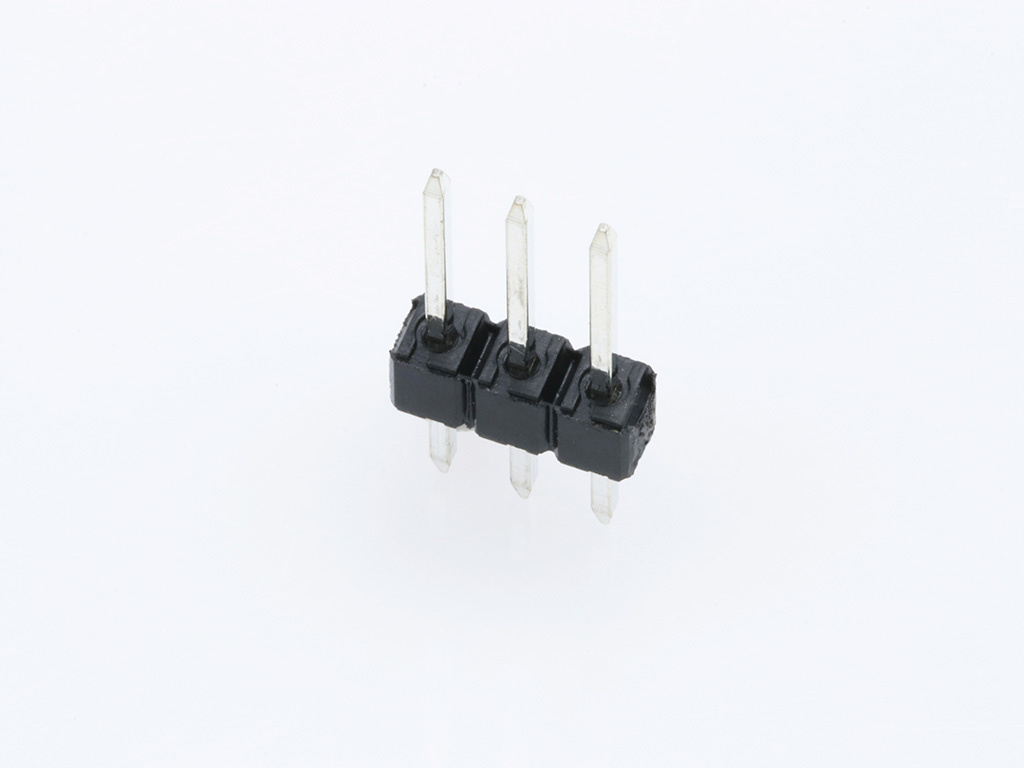

22284031 KK 254 by Molex
KK 254 Breakaway Header, Vertical, 3 Circuits, Tin (Sn) Plating, Mating Pin Length 8.13mm, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-28-4031,
0022284031, A-42375-0108 |
Where to Buy
Prices starting from US$0.06
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.08
|
24,955
in stock
|
Buy Now |
|
element14
from US$0.14
|
19,510
in stock
|
Buy Now |
|
Farnell
from US$0.16
|
19,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.16
|
2
in stock
|
Buy Now |
|
RS Americas
from US$0.19
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.15
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.06
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.204/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.05mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1X3 .100 TIN ST HDR | Heilind Americas |
| CONNECTOR, HEADER, 3POS, 1ROW, 2.54MM | element14 |
| Connector, Header, 3Pos, 1Row, 2.54Mm | Newark Electronics |
| KK 100 HDR ASSY BKWY 03 CKT TIN | RS Americas |
| Molex Stiftleiste (Standard) 22284031 1 St. | Conrad |
| Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag | Avnet Abacus |
