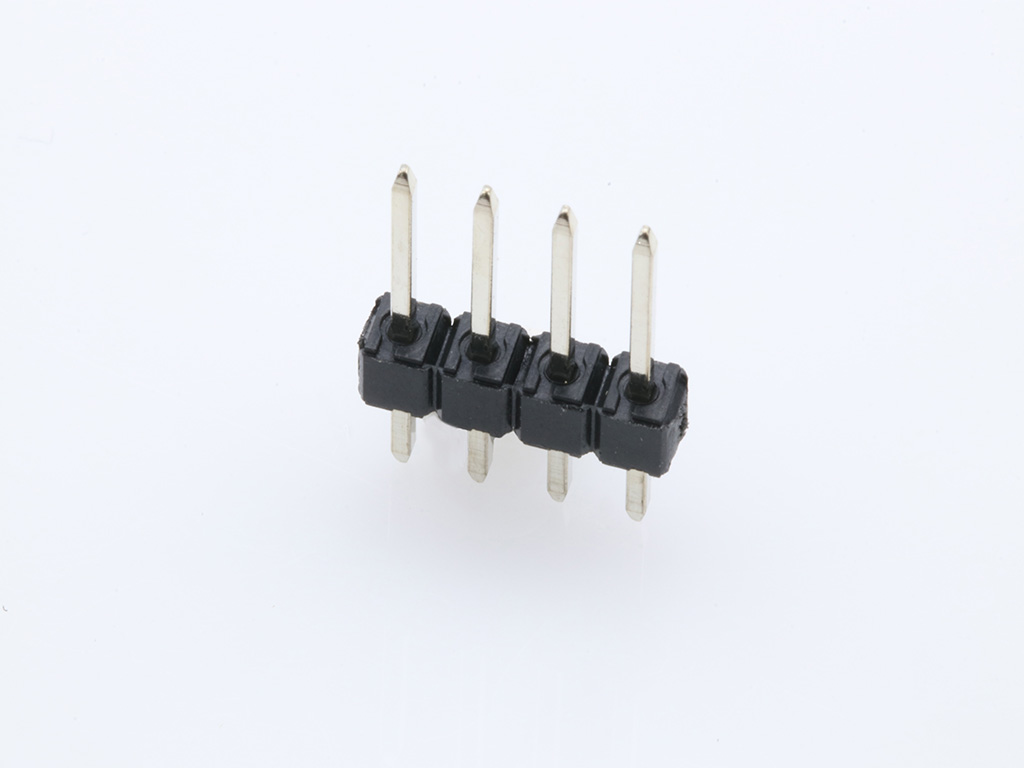

22284041 KK 254 by Molex
KK 254 Breakaway Header, Vertical, 4 Circuits, Tin (Sn) Plating, Mating Pin Length 8.13mm, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-28-4041,
0022284041, 42375-0109 |
Where to Buy
Prices starting from US$0.07
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.09
|
19,000
in stock
|
Buy Now |
|
Conrad
from US$0.22
|
19,000
in stock
|
Buy Now |
|
Farnell
from US$0.11
|
17,100
in stock
|
Buy Now |
|
element14
from US$0.17
|
6,186
in stock
|
Buy Now |
|
Newark Electronics
from US$0.18
|
3,647
in stock
|
Buy Now |
|
RS
from US$0.15
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.11
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.15
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.10
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.07
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.272/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.05mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: pin strips | TME |
| Molex Stiftleiste (Standard) 22284041 1 St. Bulk | Conrad |
| CONN, HEADER, 4POS, 1ROW, 2.54MM | Farnell |
| CONNECTOR, HEADER, 4POS, 1ROW, 2.54MM | element14 |
| Connector, Header, 4Pos, 1Row, 2.54Mm | Newark Electronics |
| Molex 22-28-4041 PCB Header | RS |
| Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag | Avnet America |
| KK 100 HDR ASSY BKWY 04 CKT TIN | RS Americas |
| KK 100 HDR ASSY BKWY 04 CKT T N | Heilind Americas |
