22284042 KK 254 by Molex

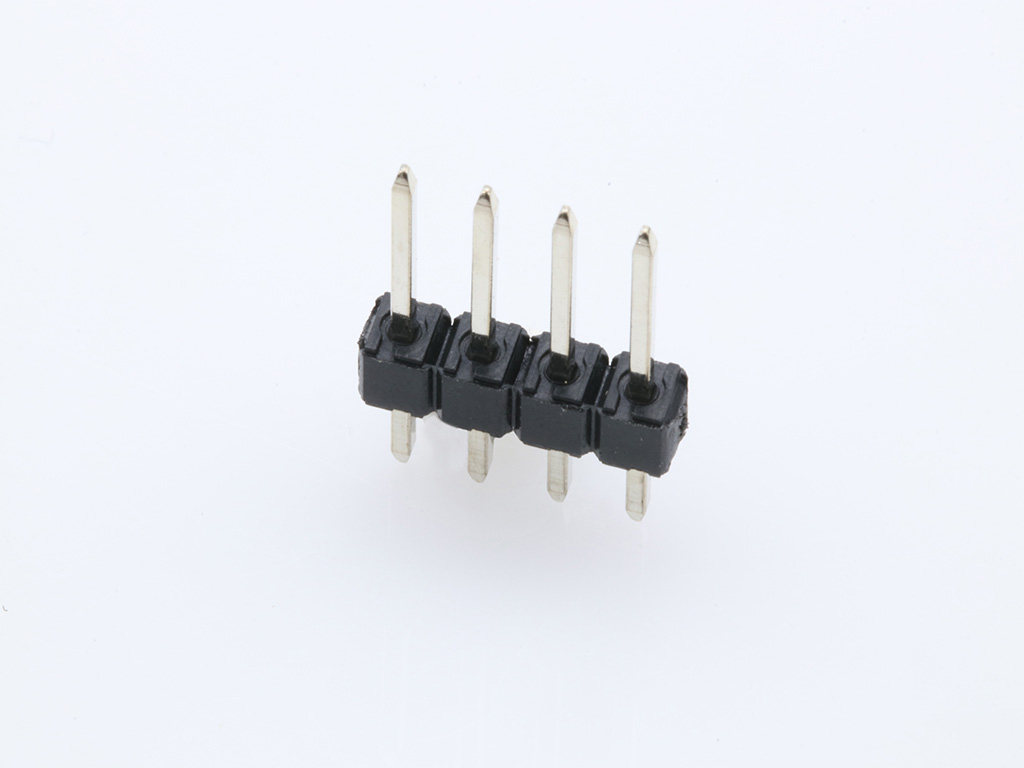

KK 254 Breakaway Header, Vertical, 4 Circuits, Tin (Sn) Plating, Mating Pin Length 7.49mm, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-28-4042,
0022284042, 42375-0214 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.19
|
22,553
in stock
|
Buy Now |
|
element14
from US$0.17
|
22,553
in stock
|
Buy Now |
|
Farnell
from US$0.09
|
22,553
in stock
|
Buy Now |
|
TME
from US$0.12
|
22,474
in stock
|
Buy Now |
|
Conrad
from US$0.25
|
22,474
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
2,341
in stock
|
Buy Now |
|
RS
from US$0.21
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.11
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.12
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.10
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.09
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.10
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.264/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.05mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Header, 4Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, HEADER, 4POS, 1ROW, 2.54MM | element14 |
| Connector: pin strips | TME |
| Molex Stiftleiste (Standard) 22284042 1 St. Bulk | Conrad |
| Molex 22-28-4042 PCB Header | RS |
| Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag | Avnet America |
| KK 100 Hdr Assy Bkwy 04 Ckt Tin | RS Americas |
| KK 100 HDR ASSY BKWY 04 CKT TI | Heilind Americas |
| HDR VT 1X04P .1 295/120 SN | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22284042?
Additional datasheets, footprints and schematics for 22284042 are listed on our Part Details page. You can also find images and similar parts to 22284042 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22284042 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22284042 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22284042 fall under?
The 22284042 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22284042 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22284042 you can contact the distributor directly for product support, shipping queries etc.
Is the 22284042 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22284042 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, TME and Conrad have stock available or on a lead time for 22284042.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22284042 often in real-time on the comparison pages.
What if I can't find stock of 22284042?
You can fill out our help required form which you can use to request a quote for 22284042 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
