22284084 KK 254 by Molex

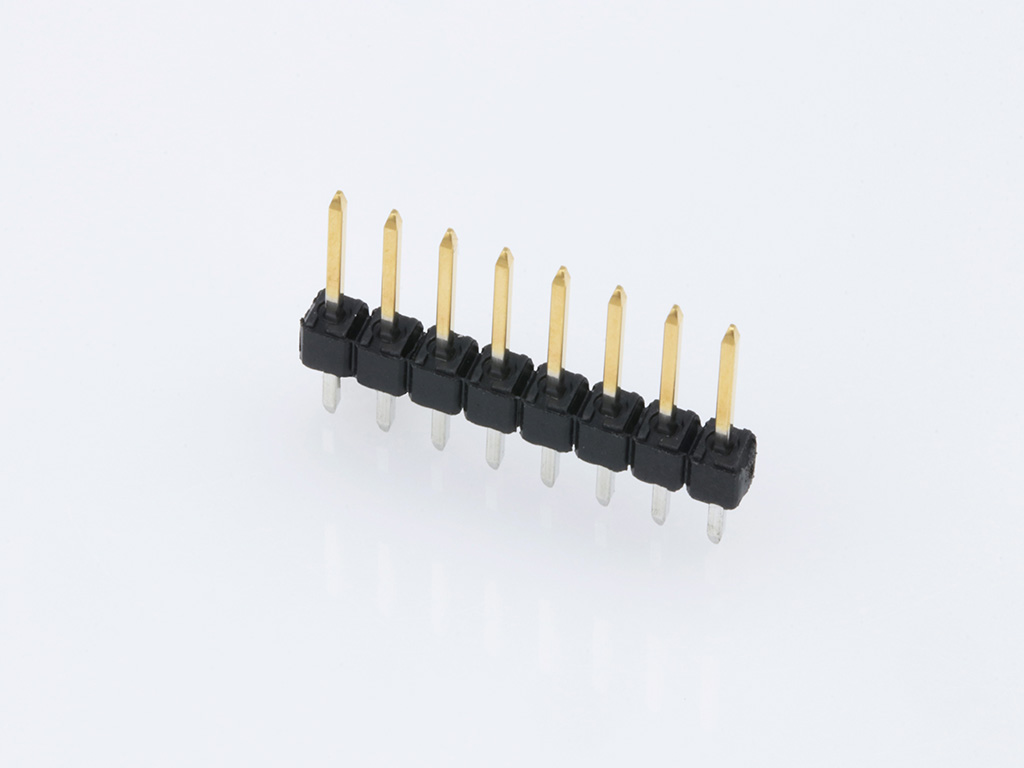

KK 254 Breakaway Header, Vertical, 8 Circuits, 0.38µm Gold (Au) Plating, Mating Pin Length 8.13mm, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-28-4084,
0022284084, 42375-0148 |
Where to Buy
Prices starting from US$0.11
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.53
|
10,626
in stock
|
Buy Now |
|
Farnell
from US$0.60
|
9,564
in stock
|
Buy Now |
|
Heilind Americas
from US$0.35
|
8,747
in stock
|
Buy Now |
|
element14
from US$0.55
|
4,900
in stock
|
Buy Now |
|
TME
from US$0.48
|
2,430
in stock
|
Buy Now |
|
Newark Electronics
from US$0.11
|
57
in stock
|
Buy Now |
|
RS
from US$0.81
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.49
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.52
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.46
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.43
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.563/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.05mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftleiste (Standard) 22284084 1 St. Bulk | Conrad |
| CONN, HEADER, 8POS, 1ROW, 2.54MM | Farnell |
| KK 100 HDR ASSY BKWY 08 CKT 15 | Heilind Americas |
| CONNECTOR, HEADER, 8POS, 1ROW, 2.54MM | element14 |
| Connector: pin strips | TME |
| Connector, Header, 8Pos, 1Row, 2.54Mm | Newark Electronics |
| Molex 22-28-4084 PCB Header | RS |
| Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag | Avnet America |
| KK 100 Hdr Assy Bkwy 08 Ckt 15 SGold | RS Americas |
| KK 254 BREAKAWAY HEADER, | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22284084?
Additional datasheets, footprints and schematics for 22284084 are listed on our Part Details page. You can also find images and similar parts to 22284084 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22284084 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22284084 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22284084 fall under?
The 22284084 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22284084 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22284084 you can contact the distributor directly for product support, shipping queries etc.
Is the 22284084 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22284084 have stock available?
Authorised distributors including Conrad, Farnell, Heilind Americas, element14 and TME have stock available or on a lead time for 22284084.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22284084 often in real-time on the comparison pages.
What if I can't find stock of 22284084?
You can fill out our help required form which you can use to request a quote for 22284084 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
