22284120 KK 254 by Molex

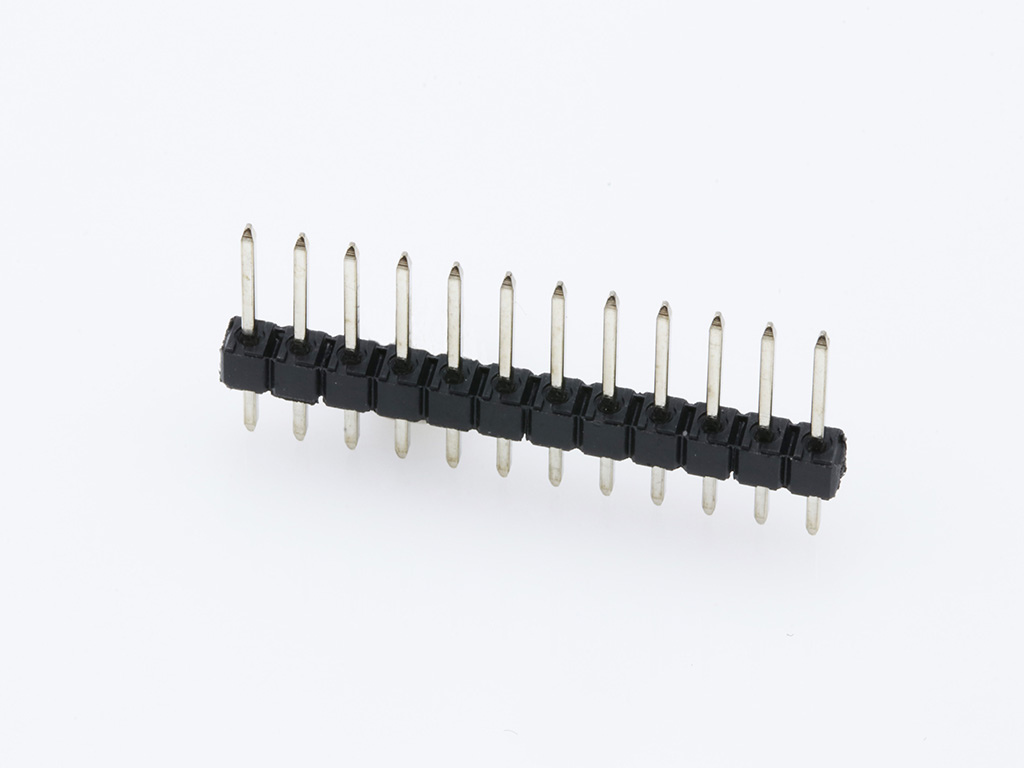

KK 254 Breakaway Header, Vertical, 12 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-28-4120,
0022284120, 42375-0012 |
Where to Buy
Prices starting from US$0.27
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.52
|
1,248
in stock
|
Buy Now |
|
element14
from US$0.46
|
1,248
in stock
|
Buy Now |
|
Farnell
from US$0.46
|
1,248
in stock
|
Buy Now |
|
RS Americas
from US$0.56
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.46
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.27
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.35
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.732/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.18mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +80°C |
