22292021 KK 254 by Molex

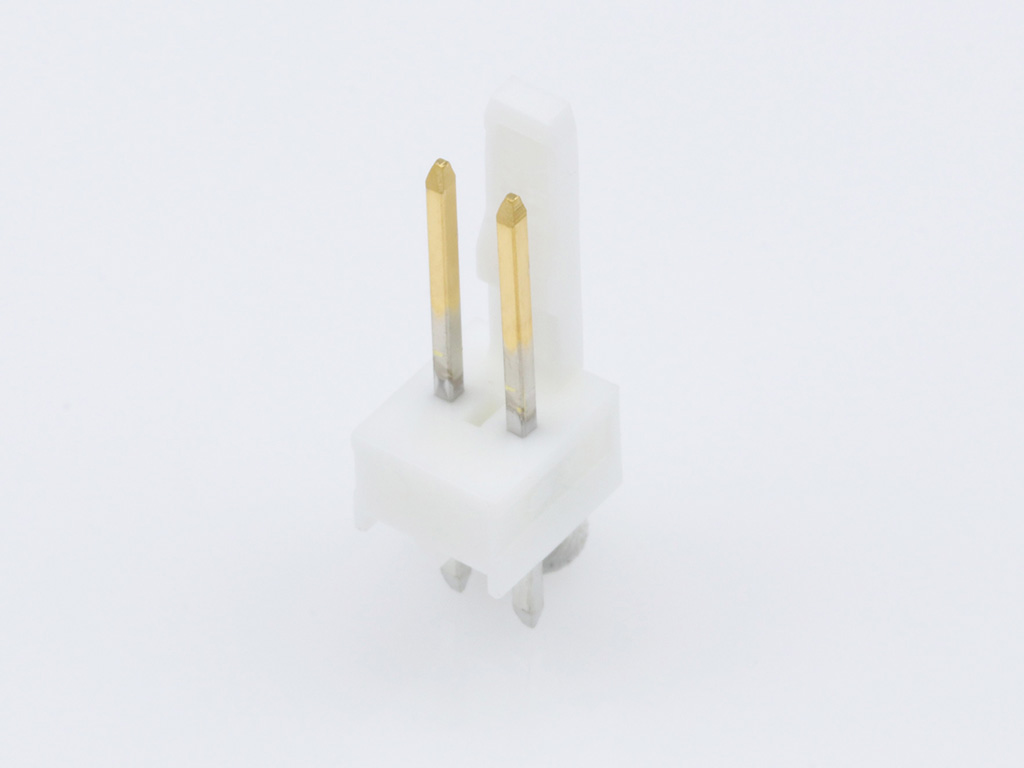

KK 254 Header, Vertical, Square Pin, Friction Lock, 2 Circuits, 7.50mm Mating Pin Length, 3.56mm Tail Length, 0.51µm Gold (Au) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-29-2021,
0022292021, AE-6410-02A(241) |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.25
|
66,000
in stock
|
Buy Now |
|
element14
from US$0.30
|
37,335
in stock
|
Buy Now |
|
Farnell
from US$0.33
|
37,335
in stock
|
Buy Now |
|
TME
from US$0.25
|
7,028
in stock
|
Buy Now |
|
Sager
from US$0.17
|
5,430
in stock
|
Buy Now |
|
EME
from US$0.29
|
4,860
in stock
|
Buy Now |
|
Heilind Americas
from US$0.24
|
3,666
in stock
|
Buy Now |
|
Newark Electronics
from US$0.29
|
3,124
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.38
|
2,169
in stock
|
Buy Now |
|
Conrad
from US$0.45
|
2,169
in stock
|
Buy Now |
|
RS
from US$0.38
|
1,702
in stock
|
Buy Now |
|
|
RS Americas
from US$0.46
|
125
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.22
|
67
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
61
in stock
|
Buy Now |
|
Offical Electronic
-
|
3,824
in stock
|
Buy Now |
|
Avnet Abacus
-
|
2,850
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
1,525
in stock
|
Buy Now |
|
Rutronik
from US$0.27
|
0
in stock
|
Buy Now |
|
Compona
from US$0.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.22
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.24
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V AC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.216/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.56mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.510µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 2.54 MM KK HEADER VERTICAL F/L | TTI Europe |
| CONNECTOR, HEADER, 2POS, 1ROW, 2.54MM | element14 |
| Connector: wire-board | TME |
| Headers & Wire Housings 2.54mm KK Hdr Vt FricLK VrA .5Au 2Ckt | Sager |
| 2.54MM KK HDR VT FRICLK VRA .5 | Heilind Americas |
| Conn, Header, 2Pos, 2Row, 2.54Mm | Newark Electronics |
| Molex 22292021 KK 254 Header 2 Pins 2.54mm Pitch Gold Plated Friction Lock | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 2.54 mm 22292021 1 St. Bag | Conrad |
| Molex 22-29-2021 Pin Header | RS |
| 2.54MMKKHDRVTFRICLKVRA.5AU2CKT 6410 SERIES | RS Americas |
| KK .100 HDR 02P VT AU | TTI Americas |
| Pin Header, Vertical, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Through Hole Straight | Avnet America |
| 02P KK PINHEAD W FRICTION LOCK | Rutronik |
| MOLEX 22-29-2021 Plug Square 20p THT Friction Lock, 0.508μm Gold (Au) | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22292021?
Additional datasheets, footprints and schematics for 22292021 are listed on our Part Details page. You can also find images and similar parts to 22292021 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22292021 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22292021 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22292021 fall under?
The 22292021 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22292021 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22292021 you can contact the distributor directly for product support, shipping queries etc.
Is the 22292021 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22292021 have stock available?
Authorised distributors including TTI Europe, element14, Farnell, TME and Sager have stock available or on a lead time for 22292021.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22292021 often in real-time on the comparison pages.
What if I can't find stock of 22292021?
You can fill out our help required form which you can use to request a quote for 22292021 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
