22566267 SL by Molex

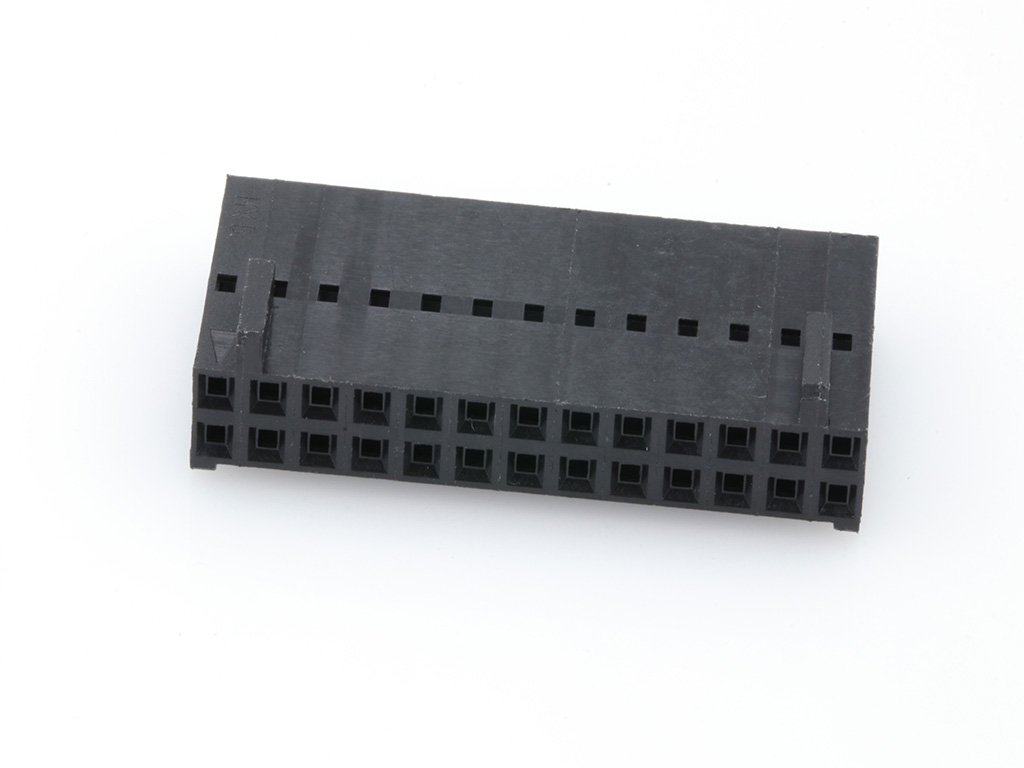

2.54mm Pitch SL Crimp Housing, Dual Row, Version F, 26 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-56-6267,
0022566267, 704500261 |
Where to Buy
Prices starting from US$0.70
Specifications
| Product Name | SL |
|---|---|
| Application | Signal, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 26 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Material Resin | Polyester |
| Net Weight | 2.274/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cgrid Sl Hsg Opt F Dr 26Ckt |Molex 22-56-6267 | Newark Electronics |
| Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Bag | Avnet America |
| CGRID SL HSG OPT F DR 26CKT | RS Americas |
| CGRID SL HSG OPT F DR 26CKT | Heilind Americas |
