2451301020 Nano-Fit by Molex

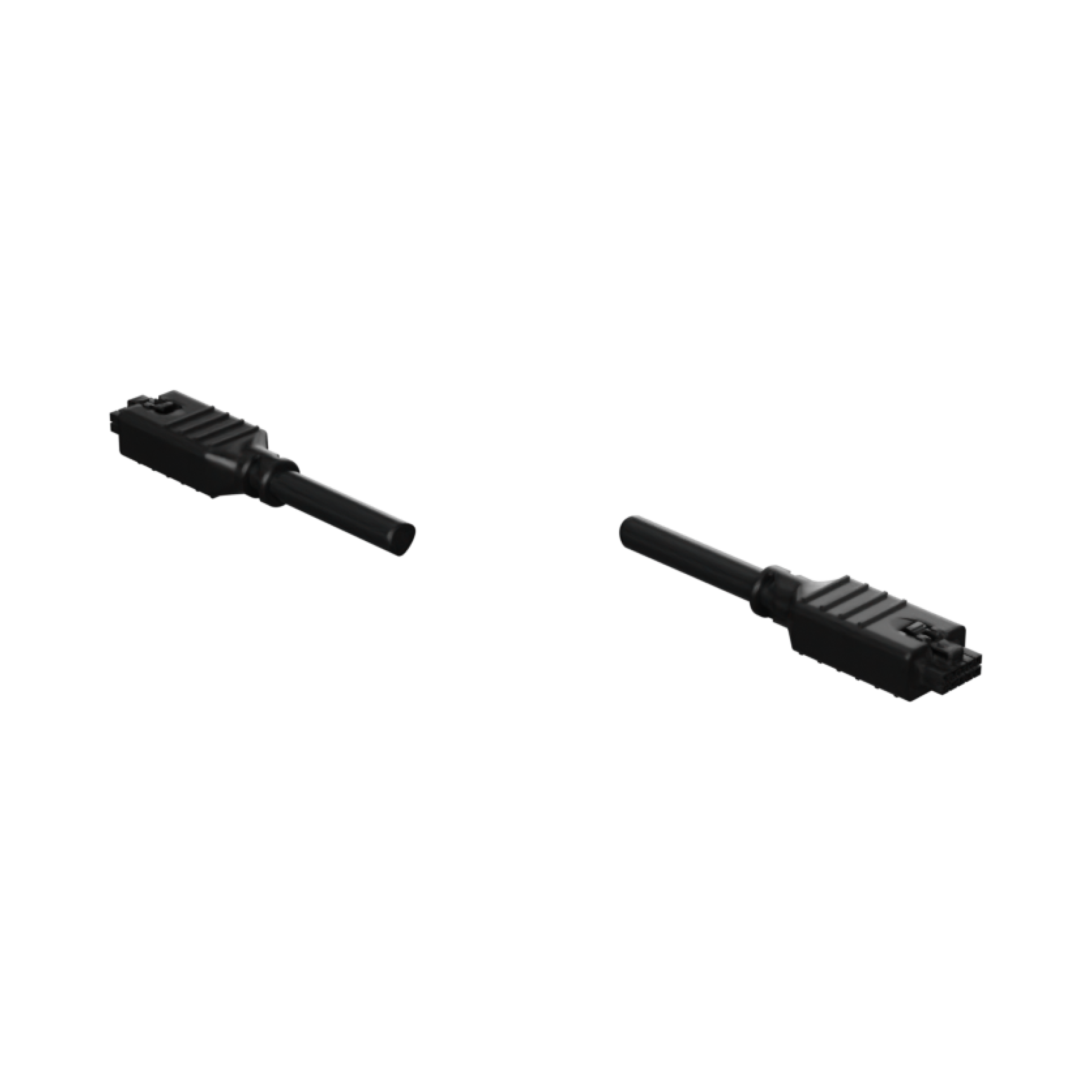

Nano-Fit-to-Nano-Fit Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, Matte Tin (Sn) Plating, 2.0m Length, 10 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 245130-1020 |
Where to Buy
Prices starting from US$19.56
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 250V AC/DC |
Physical |
|
|---|---|
| Cable Length | 2.0m |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 216.010/g |
| Number Of Rows | 2 |
| Over Molded | Yes |
| Pitch Mating Interface | 2.50mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 20 |
