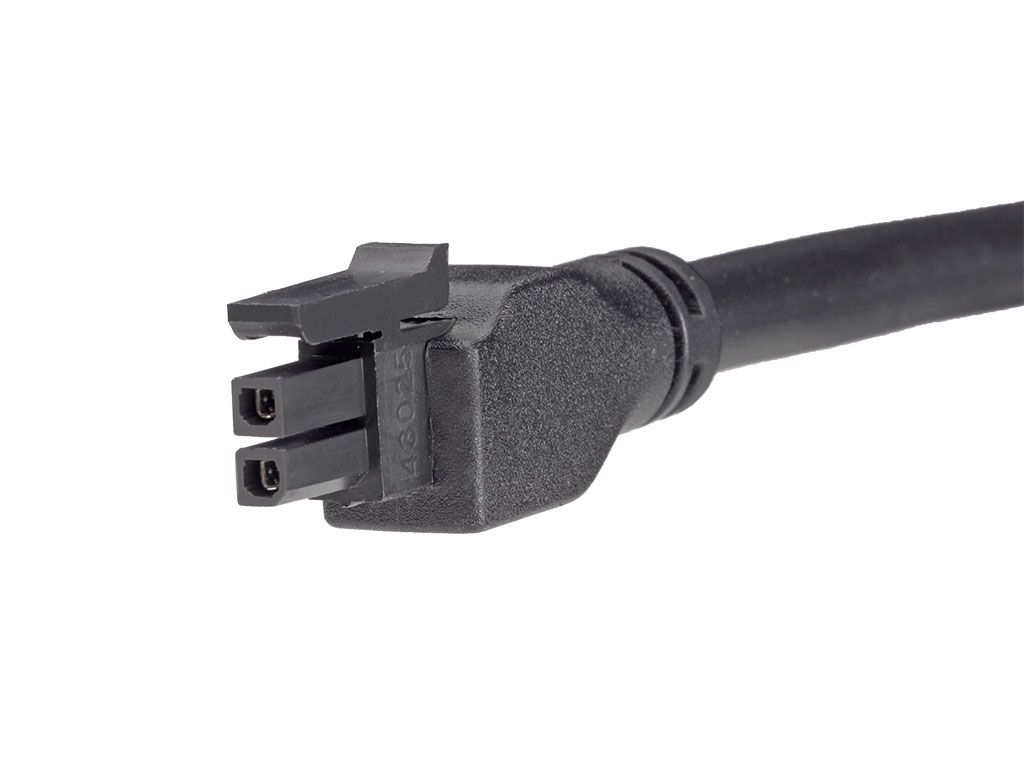

2451320210 Micro-Fit 3.0 by Molex
Micro-fit 3.0-to-Micro-Fit 3.0 Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 1.0m Length, 2 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
245132-0210,
795161021 |
Where to Buy
Prices starting from US$1.67
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$8.03
|
303
in stock
|
Buy Now |
|
Conrad
from US$8.35
|
274
in stock
|
Buy Now |
|
Newark Electronics
from US$1.67
|
272
in stock
|
Buy Now |
|
element14
from US$5.34
|
272
in stock
|
Buy Now |
|
Farnell
from US$6.75
|
272
in stock
|
Buy Now |
|
TME
from US$6.11
|
35
in stock
|
Buy Now |
|
Sager
from US$4.73
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.5A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 1.0m |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 40.800/g |
| Number Of Rows | 2 |
| Over Molded | Yes |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 245132-0210 Wire to Board Cable | RS |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 2 Rastermaß: 3 mm 2451320210 1 St. Bag | Conrad |
| Cable Assy, 2Pos, Rcpt-Rcpt, 3.3Ft | Newark Electronics |
| CABLE ASSY, 2POS, RCPT-RCPT, 3.3ft | element14 |
| Cable | TME |
| DC Power Cords MICRO-FIT OTS CBL ASSY 01X02P | Sager |
