2451320410 Micro-Fit 3.0 by Molex

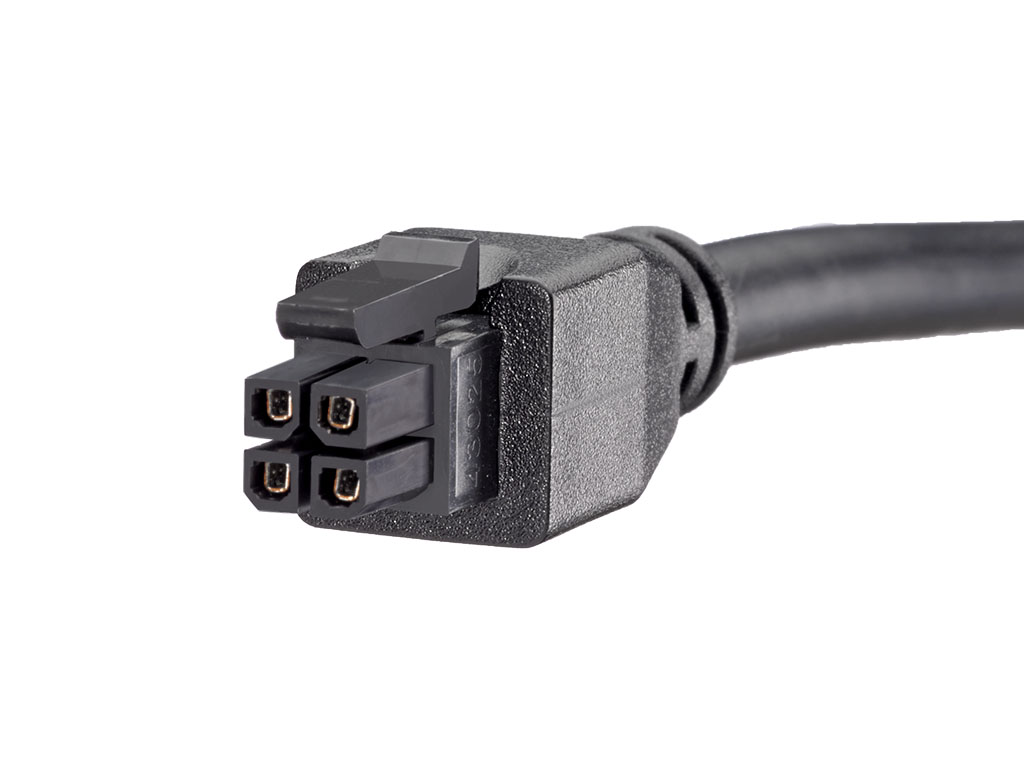

Micro-fit 3.0-to-Micro-Fit 3.0 Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 1.0m Length, 4 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
245132-0410,
795161041 |
Where to Buy
Prices starting from US$8.89
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$14.16
|
11,339
in stock
|
Buy Now |
|
RS
from US$15.84
|
313
in stock
|
Buy Now |
|
TTI Europe
from US$10.16
|
290
in stock
|
Buy Now |
|
Newark Electronics
from US$14.17
|
185
in stock
|
Buy Now |
|
element14
from US$12.55
|
185
in stock
|
Buy Now |
|
TME
from US$13.48
|
18
in stock
|
Buy Now |
|
Rapid Electronics
from US$15.72
|
4
in stock
|
Buy Now |
|
Conrad
from US$13.13
|
4
in stock
|
Buy Now |
|
Sager
from US$9.03
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$8.89
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$9.09
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 1.0m |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 53.600/g |
| Number Of Rows | 2 |
| Over Molded | Yes |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 4P, RCPT-RCPT, 1M | Farnell |
| Molex 245132-0410 Wire to Board Cable | RS |
| MICROFIT ASSEMBLY 4CT 1M | TTI Europe |
| Cable Assy, 4Pos, Rcpt-Rcpt, 3.3Ft | Newark Electronics |
| CABLE ASSY, 4POS, RCPT-RCPT, 3.3FT | element14 |
| Cable | TME |
| Molex 2451320410 Micro-fit Cable Assembly 1m 4 Circuits Black | Rapid Electronics |
| Molex Steckbuchse mit Litze 2451320410 1 St. | Conrad |
| DC Power Cords MICRO-FIT OTS CBL ASSY 02X02P | Sager |
| Micro-Fit 3.0 to Micro-Fit 3.0 Off-the-Shelf (OTS) Cable Assembly Dual Row 1.0m Length 4 Circuits Black | Heilind Americas |
