2451320830 Micro-Fit 3.0 by Molex

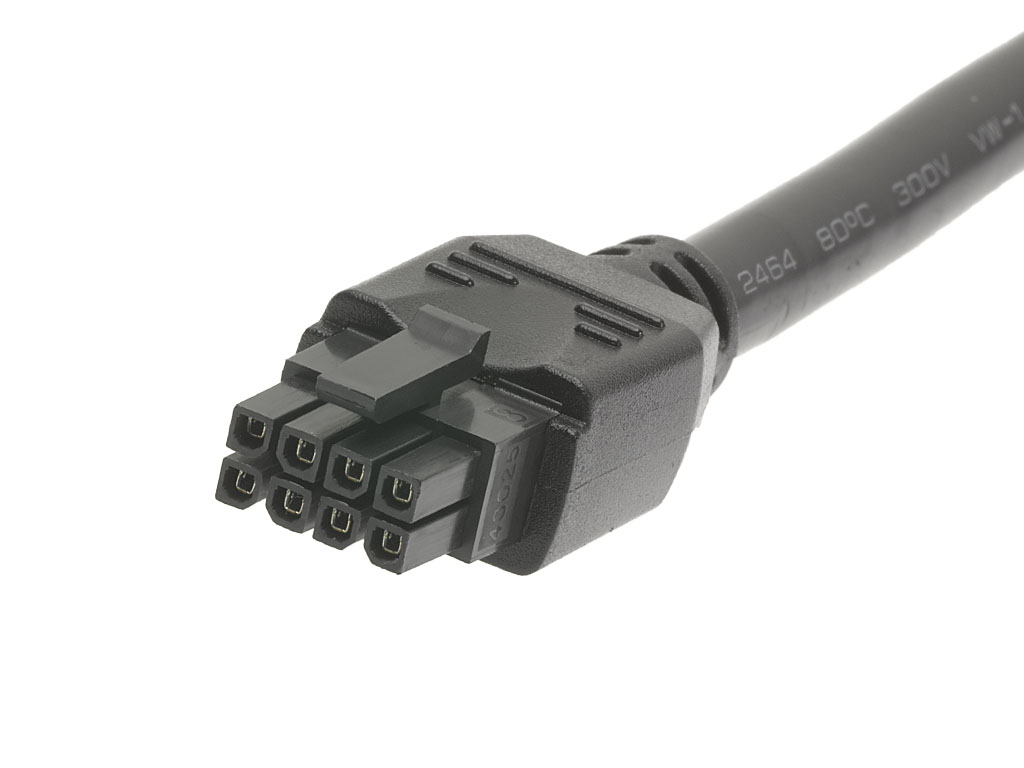

Micro-fit 3.0-to-Micro-Fit 3.0 Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 3.0m Length, 8 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 245132-0830 |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.5A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 3.0m |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 533.050/g |
| Number Of Rows | 2 |
| Over Molded | Yes |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Micro-Fit 3.0 to Micro-Fit 3.0 Off-the-Shelf (OTS) Cable Assembly Dual Row 3.0m Length 8 Circuits Black | Heilind Americas |
| Cable Assy, 8Pos, Rcpt-Rcpt, 9.8Ft | Newark Electronics |
| DC Power Cords MICROFIT 8 CIRCUIT BLACK 3M OM | Sager |
