2451321050 Micro-Fit 3.0 by Molex

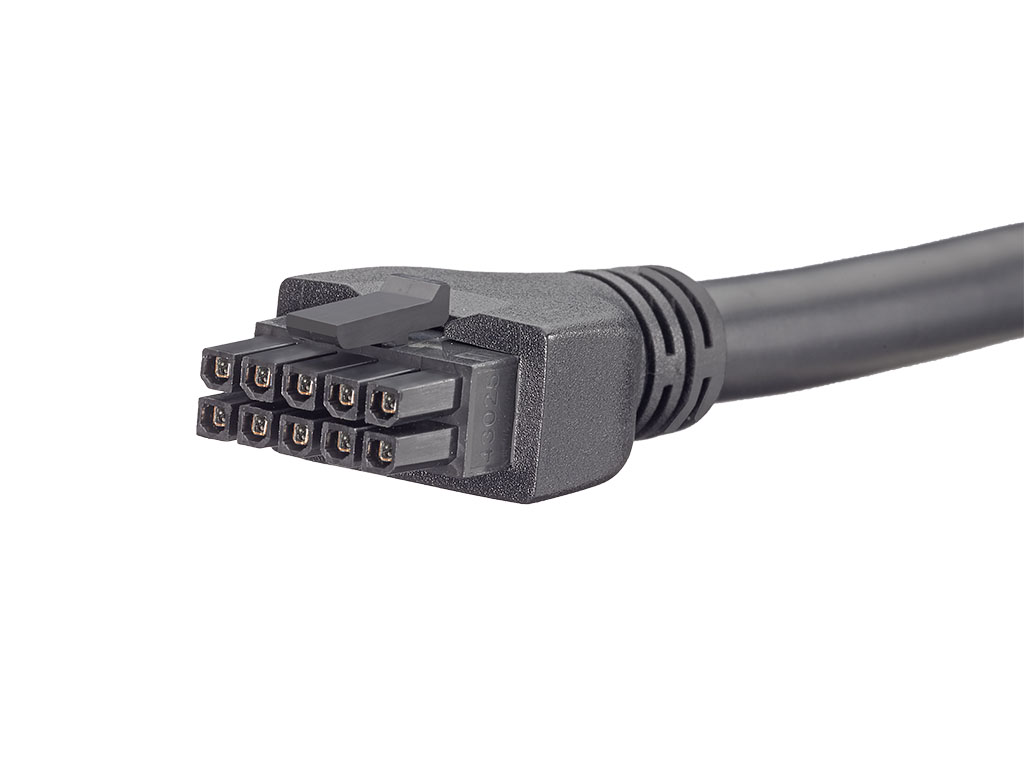

Micro-fit 3.0-to-Micro-Fit 3.0 Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 5.0m Length, 10 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
245132-1050,
795161103 |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 5.0m |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 541.358/g |
| Number Of Rows | 2 |
| Over Molded | Yes |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, 10Pos, Rcpt-Rcpt, 16.4Ft | Newark Electronics |
| CABLE ASSY, 10POS, RCPT-RCPT, 16.4ft | element14 |
| DC Power Cords MICROFIT 10 CIRCUIT BLACK 5M OM | Sager |
