2451360410 Mega-Fit by Molex

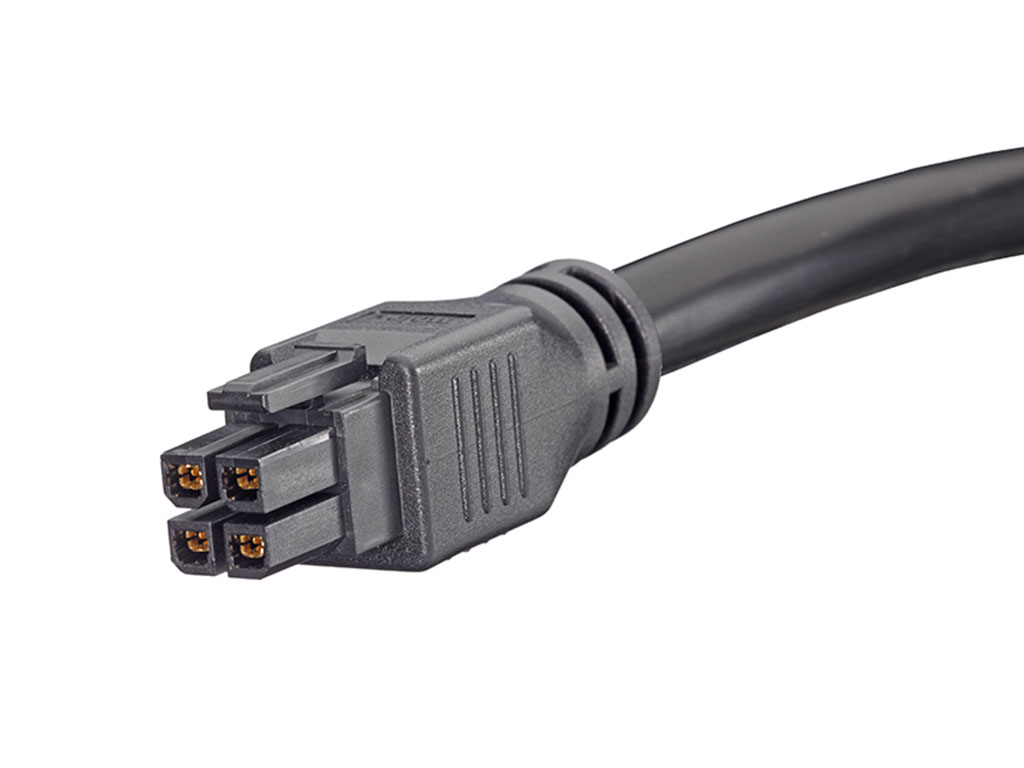

Mega-Fit-to-Mega-Fit Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 1.0m Length, Gold (Au) Plated, 4 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 245136-0410 |
Where to Buy
Prices starting from US$12.37
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$22.66
|
569
in stock
|
Buy Now |
|
Heilind Americas
from US$14.86
|
22
in stock
|
Buy Now |
|
Newark Electronics
from US$18.70
|
18
in stock
|
Buy Now |
|
TME
from US$13.00
|
3
in stock
|
Buy Now |
|
RS
from US$35.18
|
0
in stock
|
Buy Now |
|
Avnet America
from US$12.37
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$19.79
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$12.44
|
0
in stock
|
Buy Now |
|
Sager
from US$17.43
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$20.32
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 15.0A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 1.0m |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 204.800/g |
| Number Of Rows | 2 |
| Over Molded | Yes |
| Pitch Mating Interface | 5.70mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 0.381µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 2464 |
| Wire Size Awg | 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 4P, RCPT-RCPT, 1M | Farnell |
| MEGAFIT 4 CIRCUIT BLACK 1M OVERMOLDED | Heilind Americas |
| Cable Assy, 4Pos, Rcpt-Rcpt, 3.3Ft | Newark Electronics |
| Cable | TME |
| Molex 245136-0410 Cable Assembly | RS |
| Megafit 4 Circuit Black 1M Overmolded | Avnet America |
| MEGA-FIT OTS CBL ASSY 02X02P | TTI Americas |
| Sensor Cables / Actuator Cables MEGA-FIT OTS CBL ASSY 02X02P | Sager |
