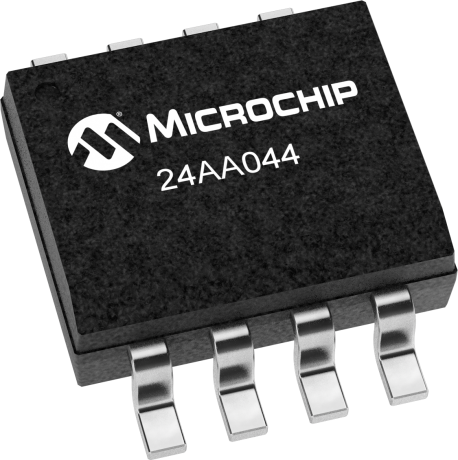

24AA044-I/SN More Semiconductors - ICs by Microchip Technology
4Kb I2C compatible 2-wire Serial EEPROM with Address Inputs
| Status: | Active |
|---|---|
| Series: | 24AA044 |
| RoHS: | Compliant |
Features
| Single Supply with Operation from 1.7V to 5.5V |
| Read current 400 uA, max |
| Standby current 1 mA, max at 85°C |
| 2-Wire Serial Interface, I2C™ Compatible |
| Cascadable up to Four Devices |
| 1 MHz, 400 kHz, and 100 kHz Clock Compatibility |
| Page Write Time 5 ms Maximum |
| Self-timed Erase/Write Cycle |
| 16-Byte Page Write Buffer |
| Hardware Write-Protect |
| ESD Protection >4,000V |
| More than 1 Million Erase/Write Cycles |
| Data Retention >200 years |
| Factory Programming Available |
| Packages include 8-lead PDIP, SOIC, TSSOP, UDFN and MSOP |
| RoHS Compliant |
| Temperature Ranges: Industrial (I): -40°C to +85°C; Automotive (E): -40°C to +125°C |
Specifications
| Density (Organization) | 4K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 1 MHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Whole Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 200 |
| Battery Backup | False |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 24AA044 4K I2C Serial EEPROM Data Sheet |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Memory Products Brochure |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 4K, 512 X 8 1.8V SERIAL EE, ADDR PINS, IND | Microchip Technology |
| Eeprom, 4Kbit, -40 To 85Deg C | Newark Electronics |
| IC: EEPROM memory | TME |
| EEPROM, 4KBIT, -40 TO 85DEG C | Farnell |
