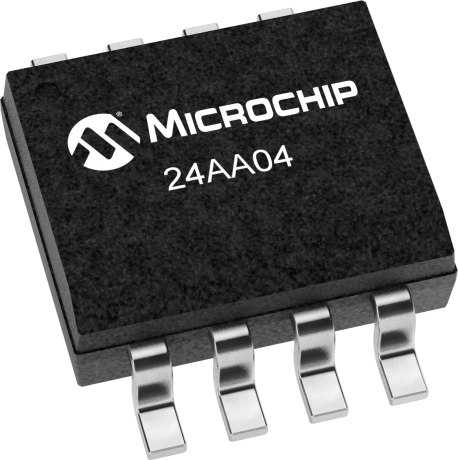

24AA04T-I/SN More Semiconductors - ICs by Microchip Technology
4Kb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24AA04 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.27
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.27
|
25,400
in stock
|
Buy Now |
|
Newark Electronics
from US$0.38
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.30
|
0
in stock
|
Buy Now |
|
TME
from US$0.30
|
0
in stock
|
Buy Now |
|
element14
from US$0.37
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single supply with operation down to 1.7V |
| Low-power CMOS technology: |
| 2-wire serial interface, I2C™ compatible |
| Schmitt Trigger inputs for noise suppression |
| Output slope control to eliminate ground bounce |
| 100 kHz and 400 kHz clock compatibility |
| Page write time 3 ms, typical |
| Self-timed erase/write cycle |
| 16-byte page write buffer |
| Hardware write-protect |
| ESD protection >4,000V |
| More than 1 million erase/write cycles |
| Data retention >200 years |
Specifications
| Density (Organization) | 4K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 400 kHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Whole Array |
| Endurance | 1,000,000 |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (3300) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 24AA04/24LC04B/24FC04 4K I2C Serial EEPROM |
Board Design Files |
|---|
| Verilog model - 24xx04 devices |
| IBIS Model - 24xx04 Devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Supporting Collateral |
|---|
| Serial EEPROM Cross Reference Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.230303 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 4K, 512 X 8 1.8V SERIAL EE | Microchip Technology |
| Eeprom, 4Kbit, I2C, 400Khz, Soic-8 | Newark Electronics |
| IC: EEPROM memory | TME |
| EEPROM, 4KBIT, I2C, 400KHZ, SOIC-8 | element14 |
