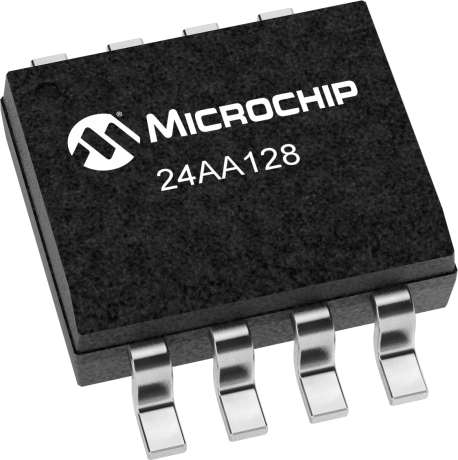

24AA128-I/SN Memory by Microchip Technology
128Kb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24AA128 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.36
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.60
|
11,683
in stock
|
Buy Now |
|
RS
from US$0.74
|
700
in stock
|
Buy Now |
|
TME
from US$0.74
|
658
in stock
|
Buy Now |
|
ECOM
from US$0.98
|
25
in stock
|
Buy Now |
|
Future Electronics
from US$0.36
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.61
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single Supply with Operation down to 1.7V for24AA128/24FC128 devices, 2.5V for 24LC128devices |
| Low-Power CMOS Technology:- Write current 3 mA, typical- Standby current 100 nA, typical |
| 2-Wire Serial Interface, I2C™ Compatible |
| Cascadable up to Eight Devices |
| Schmitt Trigger Inputs for Noise Suppression |
| Output Slope Control to Eliminate Ground Bounce |
| 100 kHz and 400 kHz Clock Compatibility |
| 1 MHz Clock for FC Versions |
| Page Write Time 5 ms, typical |
| Self-Timed Erase/Write Cycle |
| 64-Byte Page Write Buffer |
| Hardware Write-Protect |
| ESD Protection >4000V |
| More than 1 Million Erase/Write Cycles |
| Data Retention > 200 years |
| Factory Programming Available |
Specifications
| Density (Organization) | 128K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 400 kHz |
| Page Size (bytes) | 64 |
| Write Protected | False |
| Write Protect Scheme | Full Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 200 |
| Battery Backup | False |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| Verilog Model - 24xx128 Devices |
| IBIS Model - 24xx128 Devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Supporting Collateral |
|---|
| Serial EEPROM Cross Reference Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 128K, 16K X 8, 1.8V SER EE IND | Microchip Technology |
| Microchip 24AA128-I/SN Serial EEPROM | RS |
| IC: EEPROM memory | TME |
| EEPROM, 128Kbit, I2C, Vc=1.7/5.5V, -40+85°C | ECOM |
| 24AA128 Series 128 Kbit (16K x 8) 5.5 V SMT I2C CMOS Serial EEPROM - SOIC-8 | Future Electronics |
| EEPROM Serial-I2C 128K-bit 16K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube | Avnet America |
