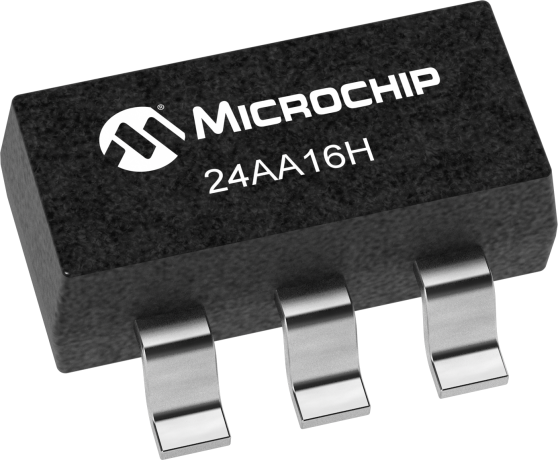

24AA16HT-I/OT More Semiconductors - ICs by Microchip Technology
16Kb I2C compatible 2-wire Serial EEPROM with Half-Array Write Protection
| Status: | Active |
|---|---|
| Series: | 24AA16H |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.18
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.27
|
24,000
in stock
|
Buy Now |
|
TME
from US$0.36
|
2,991
in stock
|
Buy Now |
|
Newark Electronics
from US$0.33
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$0.18
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.28
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.33
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.31
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
|
ECOM
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single Supply with Operation Down to 1.7V |
| Low-Power CMOS Technology: |
| 2-Wire Serial Interface, I2C™ Compatible |
| Schmitt Trigger Inputs for Noise Suppression |
| Output Slope Control to eliminate Ground Bounce |
| 100 kHz and 400 kHz Clock Compatibility |
| Page Write Time 3 ms, typical |
| Self-Timed Erase/Write Cycle |
| 16-Byte Page Write Buffer |
| Hardware Write-Protect for Half-Array (400h-7FFh) |
| ESD Protection >4,000V |
| More than 1 Million Erase/Write Cycles |
| Data Retention >200 years |
Specifications
| Density (Organization) | 16K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 400 kHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Upper Half |
| Endurance | 1,000,000 |
| Pins | Packaging | 5 | SOT-23 |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| Verilog Model - 24xx16H Devices |
| IBIS Model - 24xx16H Devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.016 |
| Shipping Weight (kg) | 0.049 |
| Lead Count | 5 |
| Package Type | SOT-23 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 16k I2C Serial EEPROM | Microchip Technology |
| IC: EEPROM memory | TME |
| Eeprom, 16Kbit, -40 To 85Deg C | Newark Electronics |
| IC EEPROM 16KBIT 400KHZ SOT23-5 | Future Electronics |
| EEPROM Serial-I2C 16K-bit 8Block x 256 x 8 1.8V/2.5V/3.3V/5V 5-Pin SOT-23 T/R | Avnet America |
| 16K, 2K X 8 1.8V SERIAL EE, IND, 1/2 ARRAY WP5 SOT-23 T/R | RS Americas |
| EEPROM, 16KBIT, -40 TO 85DEG C | Farnell |
| EEPROM, 16Kbit, x8, I2C, Uc=1.7V, -40+85°C | ECOM |
