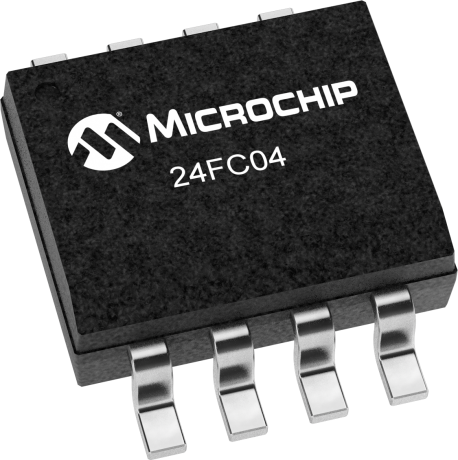

24FC04-I/SN Memory by Microchip Technology
4Kb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24FC04 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.21
|
1,195
in stock
|
Buy Now |
|
ECOM
from US$0.24
|
10
in stock
|
Buy Now |
|
RS
from US$0.25
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.20
|
0
in stock
|
Buy Now |
|
TME
from US$0.22
|
0
in stock
|
Buy Now |
|
element14
from US$0.27
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single supply with operation down to 1.7V |
| 2-wire serial interface, I2C™ compatible |
| Schmitt Trigger inputs for noise suppression |
| Output slope control to eliminate ground bounce |
| 100 kHz, 400 kHz, and 1 MHz clock compatibility |
| Page write time 3 ms, typical |
| Self-timed erase/write cycle |
| 16-byte page write buffer |
| Hardware write-protect |
| ESD protection >4,000V |
| More than 1 million erase/write cycles |
| Data retention >200 years |
Specifications
| Density (Organization) | 4K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 1 MHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Whole Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Battery Backup | False |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 24AA04/24LC04B/24FC04 4K I2C Serial EEPROM |
Board Design Files |
|---|
| Verilog model - 24xx04 devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Supporting Collateral |
|---|
| Serial EEPROM Cross Reference Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 4Kb I2C EEPROM, 1MHz 1.7-5.5V, 8-SOIC | Microchip Technology |
| EEPROM, 4kbit, 256x8, I2C, Uc=1.7/5.5V, -40+85°C | ECOM |
| Microchip 24FC04-I/SN EEPROM | RS |
| IC: EEPROM memory | TME |
| EEPROM, AEC-Q100, 4KBIT, -40 TO 85DEG C | element14 |
