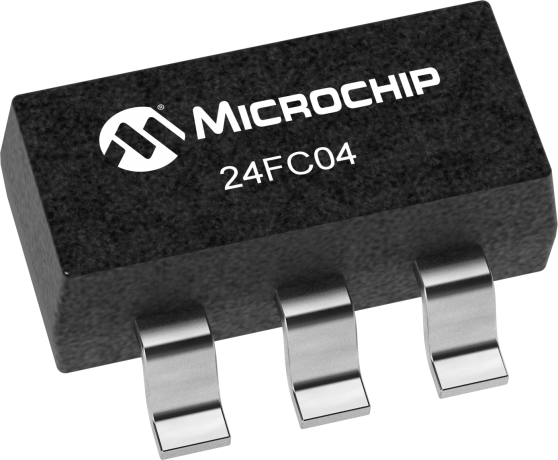

24FC04T-I/OT Memory by Microchip Technology
4Kb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24FC04 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.16
|
24,000
in stock
|
Buy Now |
|
element14
from US$0.23
|
1,305
in stock
|
Buy Now |
|
RS
from US$0.19
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
0
in stock
|
Buy Now |
|
TME
from US$0.21
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single supply with operation down to 1.7V |
| 2-wire serial interface, I2C™ compatible |
| Schmitt Trigger inputs for noise suppression |
| Output slope control to eliminate ground bounce |
| 100 kHz, 400 kHz, and 1 MHz clock compatibility |
| Page write time 3 ms, typical |
| Self-timed erase/write cycle |
| 16-byte page write buffer |
| Hardware write-protect |
| ESD protection >4,000V |
| More than 1 million erase/write cycles |
| Data retention >200 years |
Specifications
| Density (Organization) | 4K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 1 MHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Whole Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Battery Backup | False |
| Pins | Packaging | 5 | SOT-23 |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 24AA04/24LC04B/24FC04 4K I2C Serial EEPROM |
Board Design Files |
|---|
| Verilog model - 24xx04 devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Supporting Collateral |
|---|
| Serial EEPROM Cross Reference Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.016 |
| Shipping Weight (kg) | 0.049 |
| Lead Count | 5 |
| Package Type | SOT-23 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 4Kb I2C EEPROM, 1MHz 1.7-5.5V, 5-SOT23 | Microchip Technology |
| EEPROM, AEC-Q100, 4KBIT, -40 TO 85DEG C | element14 |
| Microchip Technology, 24FC04T-I/OT | RS |
| IC: EEPROM memory | TME |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 24FC04T-I/OT?
Additional datasheets, footprints and schematics for 24FC04T-I/OT are listed on our Part Details page. You can also find images and similar parts to 24FC04T-I/OT on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 24FC04T-I/OT on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 24FC04T-I/OT price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 24FC04T-I/OT fall under?
The 24FC04T-I/OT is listed under Semiconductors - ICs > Memory > EEPROM.
Can I view similar or alternative parts?
You can view similar parts to 24FC04T-I/OT when available in the EEPROM range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 24FC04T-I/OT you can contact the distributor directly for product support, shipping queries etc.
Is the 24FC04T-I/OT RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Microchip Technology.
Which authorised distributors for 24FC04T-I/OT have stock available?
Authorised distributors including Microchip Technology, element14, RS, Avnet America and TME have stock available or on a lead time for 24FC04T-I/OT.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 24FC04T-I/OT often in real-time on the comparison pages.
What if I can't find stock of 24FC04T-I/OT?
You can fill out our help required form which you can use to request a quote for 24FC04T-I/OT from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
