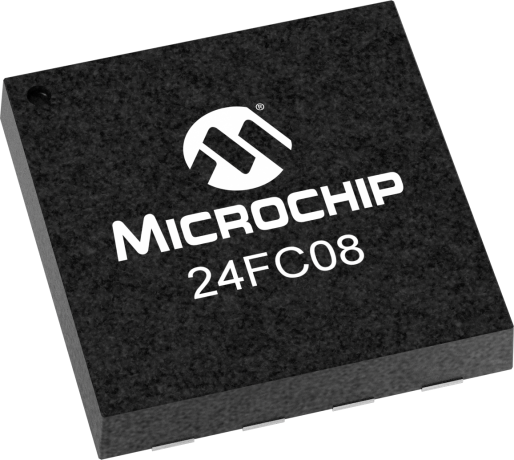

24FC08T-I/MUY More Semiconductors - ICs by Microchip Technology
8Kb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24FC08 |
| RoHS: | Compliant |
Features
| Single supply with operation down to 1.7V |
| 2-wire serial interface, I2C™ compatible |
| Schmitt Trigger inputs for noise suppression |
| Output slope control to eliminate ground bounce |
| 100 kHz, 400 kHz, and 1 MHz clock compatibility |
| Page write time 3 ms, typical |
| Self-timed erase/write cycle |
| 16-byte page write buffer |
| Hardware write-protect |
| ESD protection >4,000V |
| More than 1 million erase/write cycles |
| Data retention >200 years |
Specifications
| Density (Organization) | 8K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 1 MHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Whole Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Battery Backup | False |
| Pins | Packaging | 8 | UDFN |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (5000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 8K I2C Serial EEPROM Data Sheet |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Environmental Information
| JEDEC Indicator | e4 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0096 |
| Shipping Weight (kg) | 0.084 |
| Lead Count | 8 |
| Package Type | UDFN |
| Package Width or Size | 2x3x0.6mm |
| Soldering Composition | NiPdAu |
Alternative Descriptions
| 8Kb I2C EEPROM, 1MHz 1.7-5.5V, 8-UDFN, IND W/WHOLE ARRAY WP | Microchip Technology |
| Eeprom, Aec-Q100, 8Kbit, -40 To 85Deg C | Newark Electronics |
| EEPROM, AEC-Q100, 8KBIT, -40 TO 85DEG C | Farnell |
| EEPROM Serial-2Wire 2K-bit 1.7V 8-Pin UDFN T/R | EBV Elektronik |
