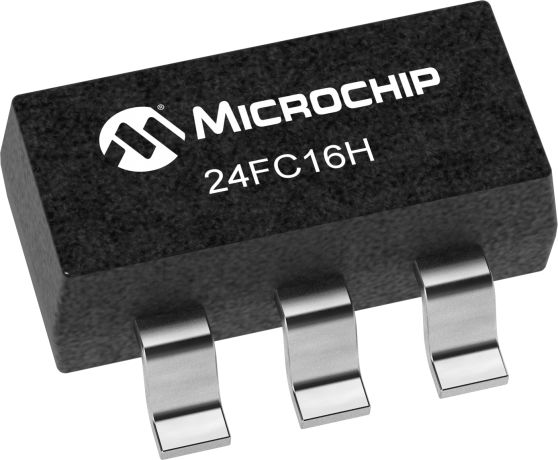

24FC16HT-I/OT More Semiconductors - ICs by Microchip Technology
16Kb I2C Serial EEPROM with Half-Array WP
| Status: | Active |
|---|---|
| Series: | 24FC16H |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.18
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.21
|
3,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.24
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.21
|
0
in stock
|
Buy Now |
|
TME
from US$0.24
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.18
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single Supply with Operation Down to 1.7V |
| 2-Wire Serial Interface, I2C™ Compatible |
| Schmitt Trigger Inputs for Noise Suppression |
| Output Slope Control to eliminate Ground Bounce |
| 100 kHz, 400 kHz, and 1MHz Clock Compatibility |
| Page Write Time 3 ms, typical |
| Self-Timed Erase/Write Cycle |
| 16-Byte Page Write Buffer |
| Hardware Write-Protect for Half-Array (400h-7FFh) |
| ESD Protection >4,000V |
| More than 1 Million Erase/Write Cycles |
| Data Retention >200 years |
Specifications
| Density (Organization) | 16K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 1 MHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Upper Half |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Battery Backup | False |
| Pins | Packaging | 5 | SOT-23 |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| Verilog Model - 24xx16H Devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.016 |
| Shipping Weight (kg) | 0.049 |
| Lead Count | 5 |
| Package Type | SOT-23 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 16Kb I2C EEPROM, 1MHz 1.7-5.5V, 8-SOT23, IND W/HALF ARRAY WP | Microchip Technology |
| 16Kb I2C Eeprom, 1Mhz 1.7-5.5V, 5-Sot23, Ind W/Half Array Wp Rohs Compliant: Yes |Microchip Technology 24FC16HT-I/OT | Newark Electronics |
| EEPROM Serial-2Wire 16K-bit 1.7V 5-Pin SOT-23 T/R | Avnet America |
| IC: EEPROM memory | TME |
| EEPROM, AEC-Q100, 16KBIT, -40TO85DEG C | Farnell |
